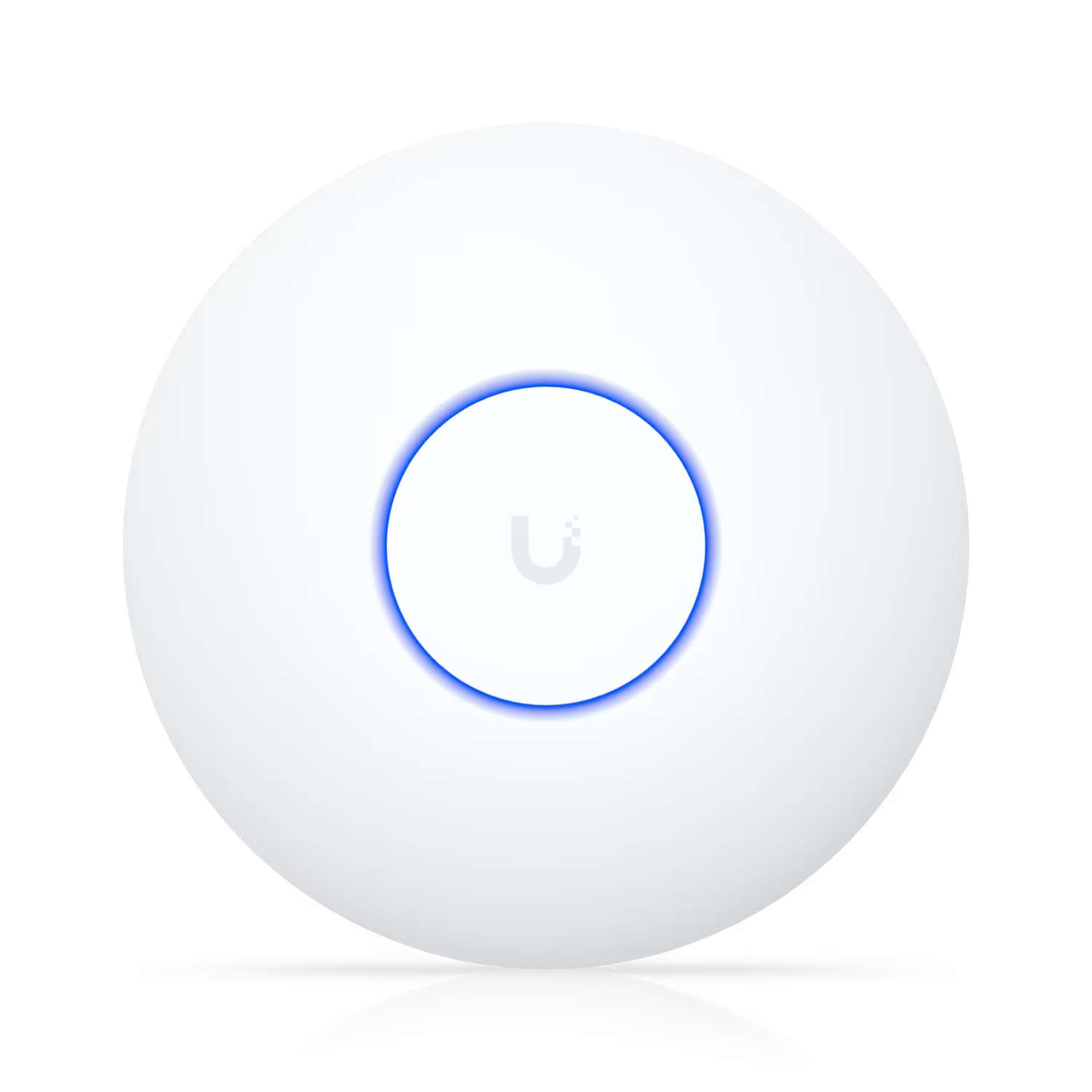

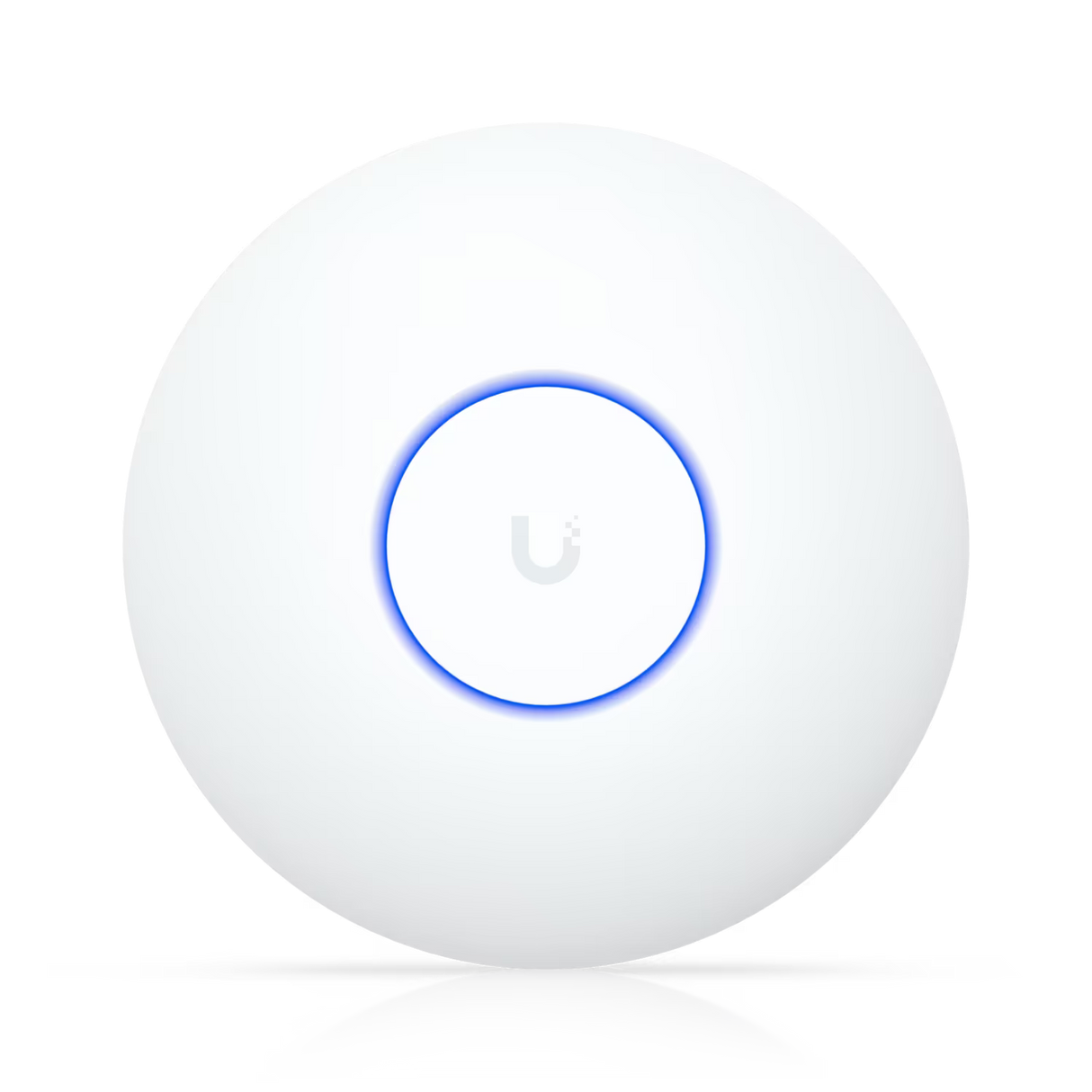

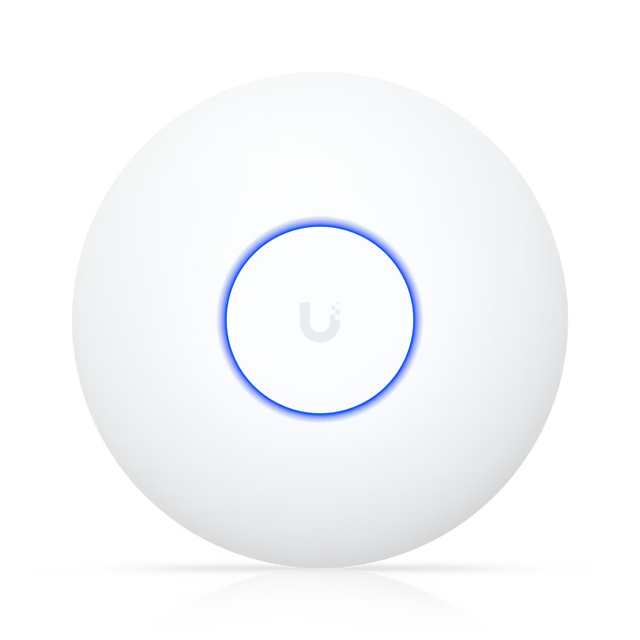

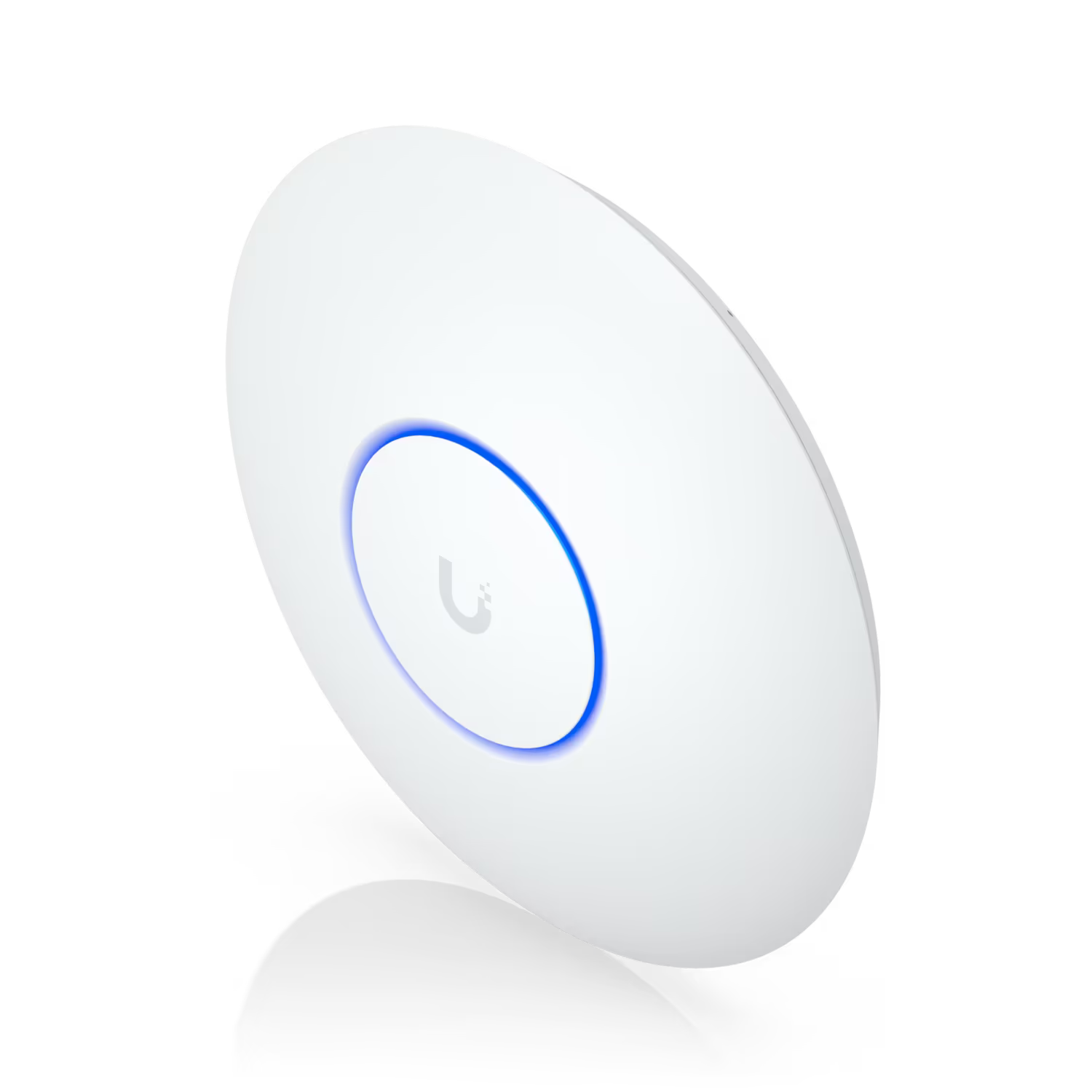

UBIQUITI UniFi U7 Lite, belaidžio tinklo prieigos taškas

INFORMACIJA

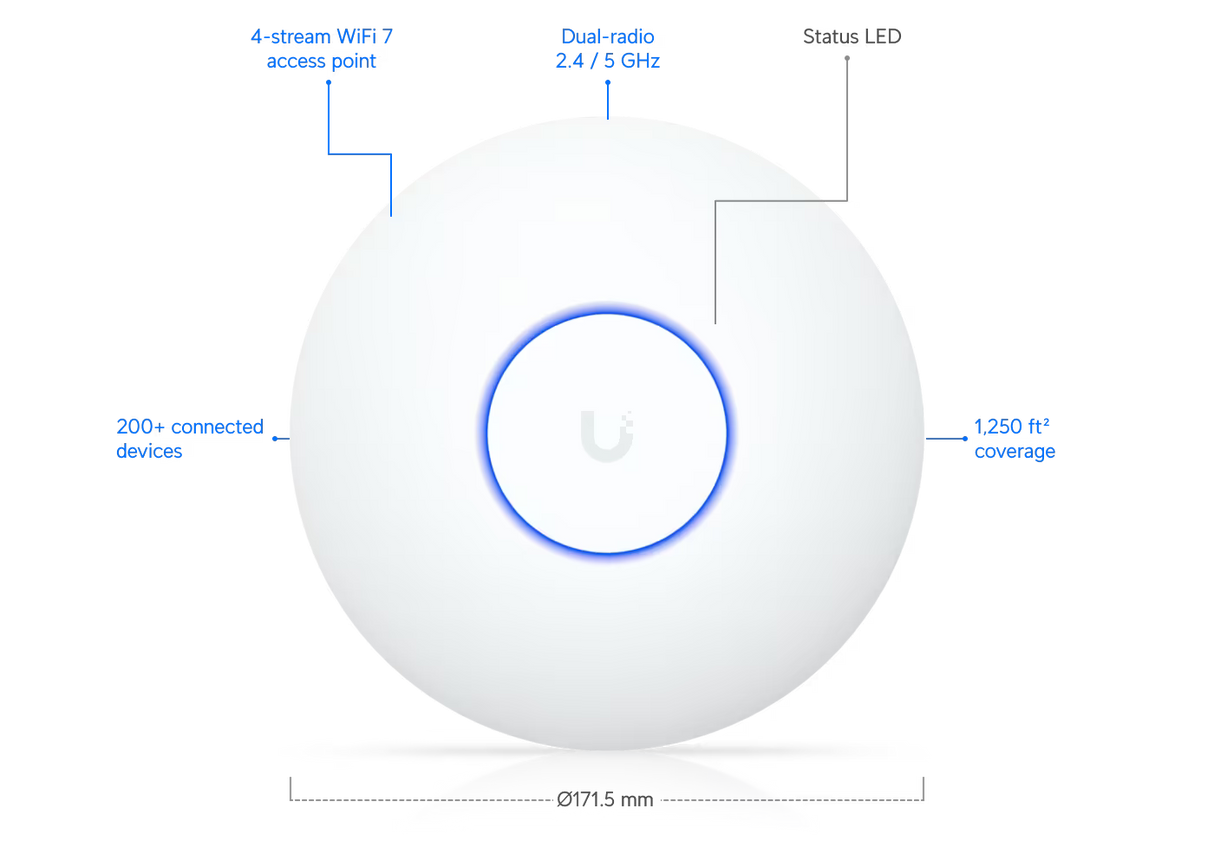

UBIQUITI UniFI U7 Lite - tai WiFi 7 prieigos taškas, užtikrinantis greitą, stabilų ir efektyvų belaidį ryšį tiek namuose, tiek biure. Šis kompaktiškas įrenginys padengia iki 115 m² plotą, leidžia prijungti daugiau nei 200 įrenginių vienu metu ir suteikia iki 4,3 Gbps spartą, kad vaizdo transliacijos, žaidimai ir darbas vyktų be trikdžių.

WiFi standartas: WiFi 7, užtikrinantis aukščiausią greitį ir stabilumą.
Sparta: iki 4.3 Gbps (5 GHz) ir 688 Mbps (2.4 GHz).
Aprėptis: iki 115 m², palaiko 200+ įrenginių vienu metu.
Jungtis: 2.5 GbE RJ45, PoE maitinimas.

TECHNINIAI DUOMENYS

Overview

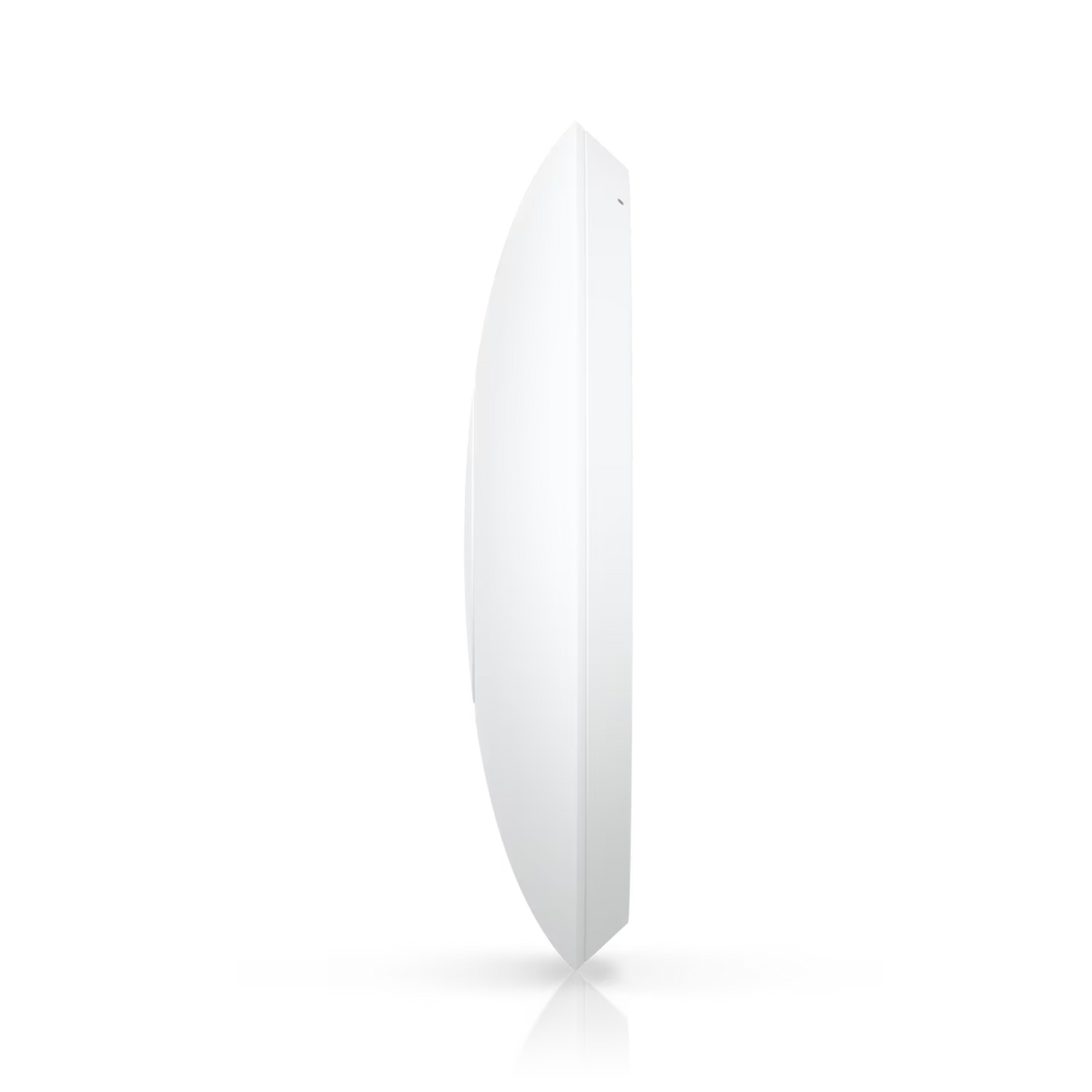

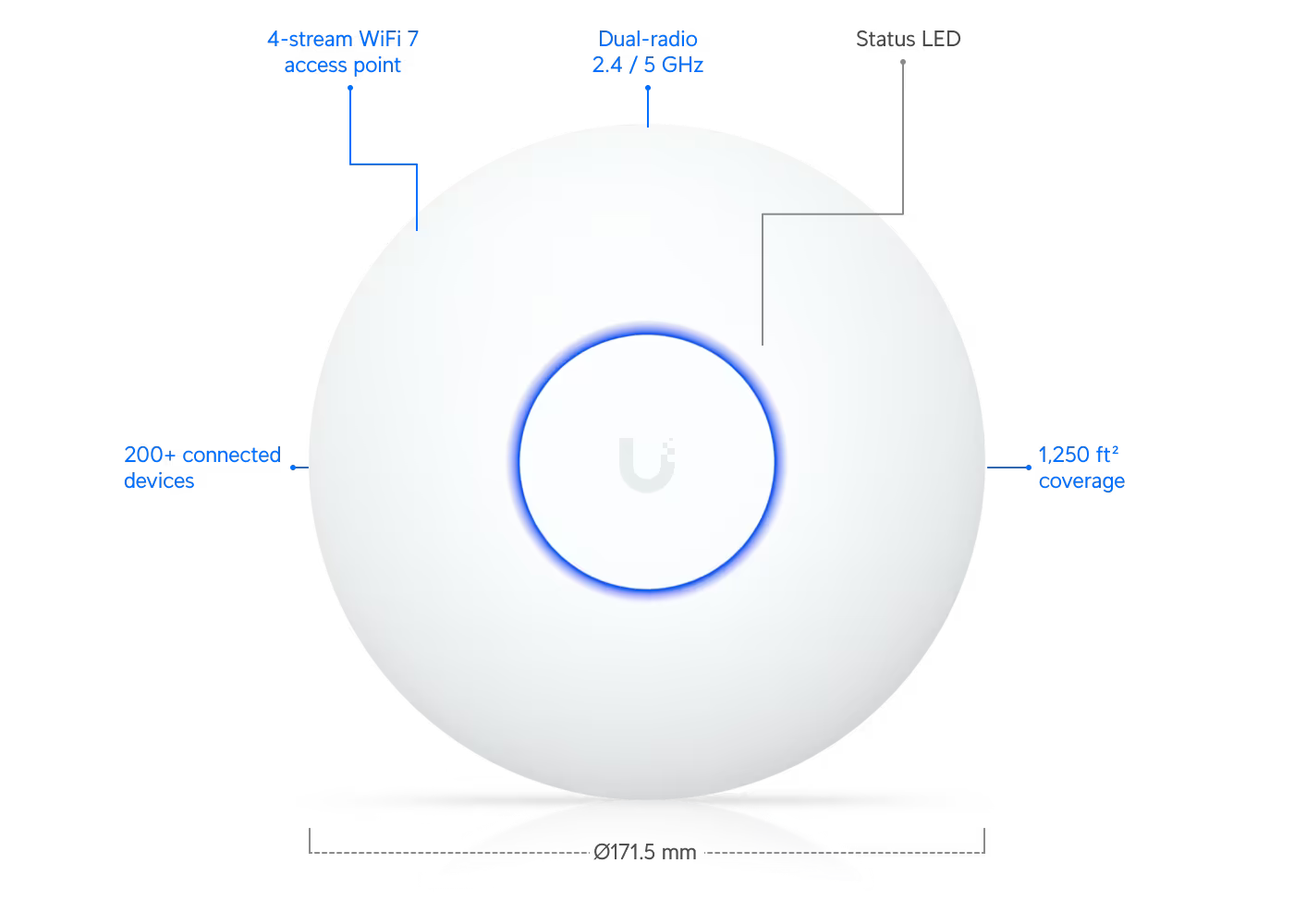

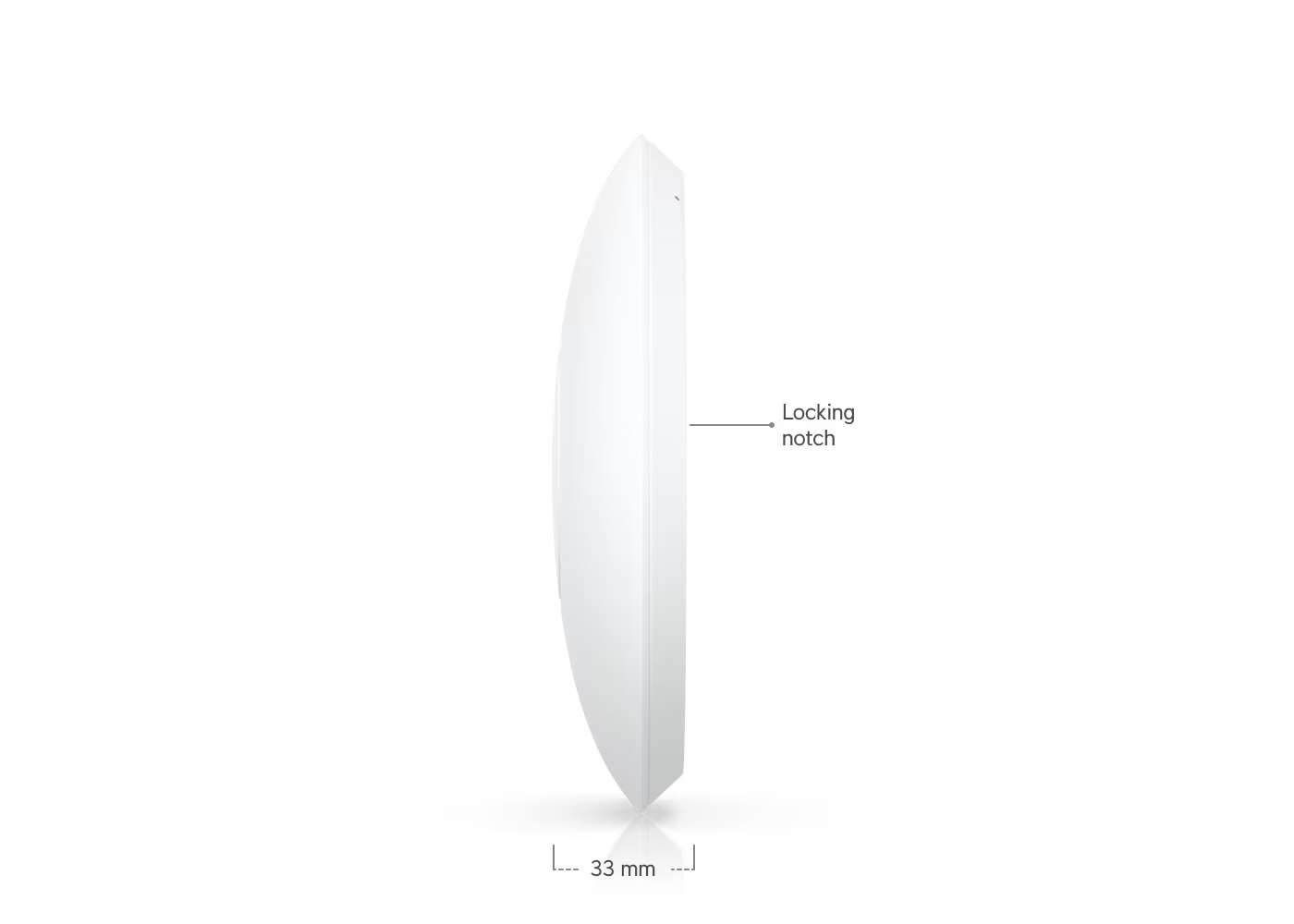

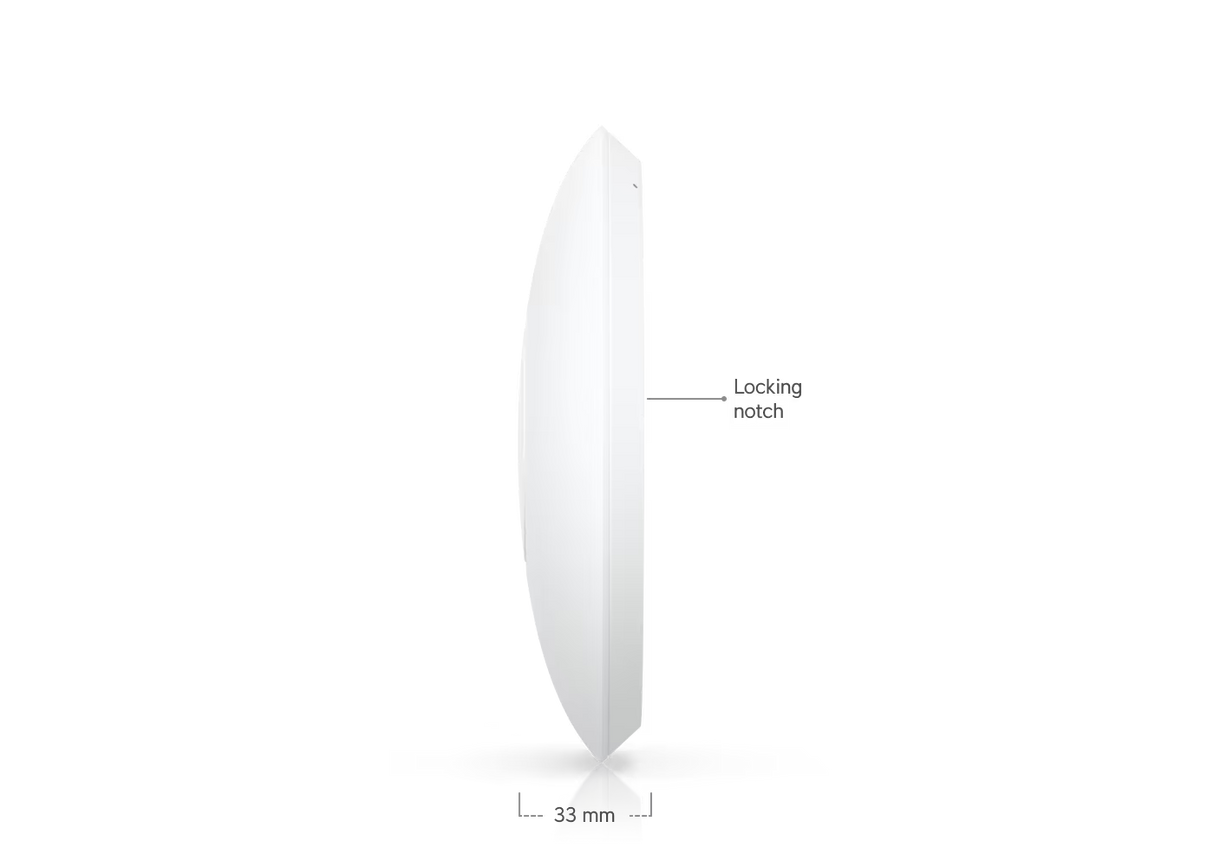

Dimensions
Ø171.5 x 33 mm
(Ø6.8 x 1.3")
WiFi Standard
WIFi 7
Spatial Streams
4
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
200+
Uplink
2.5 GbE

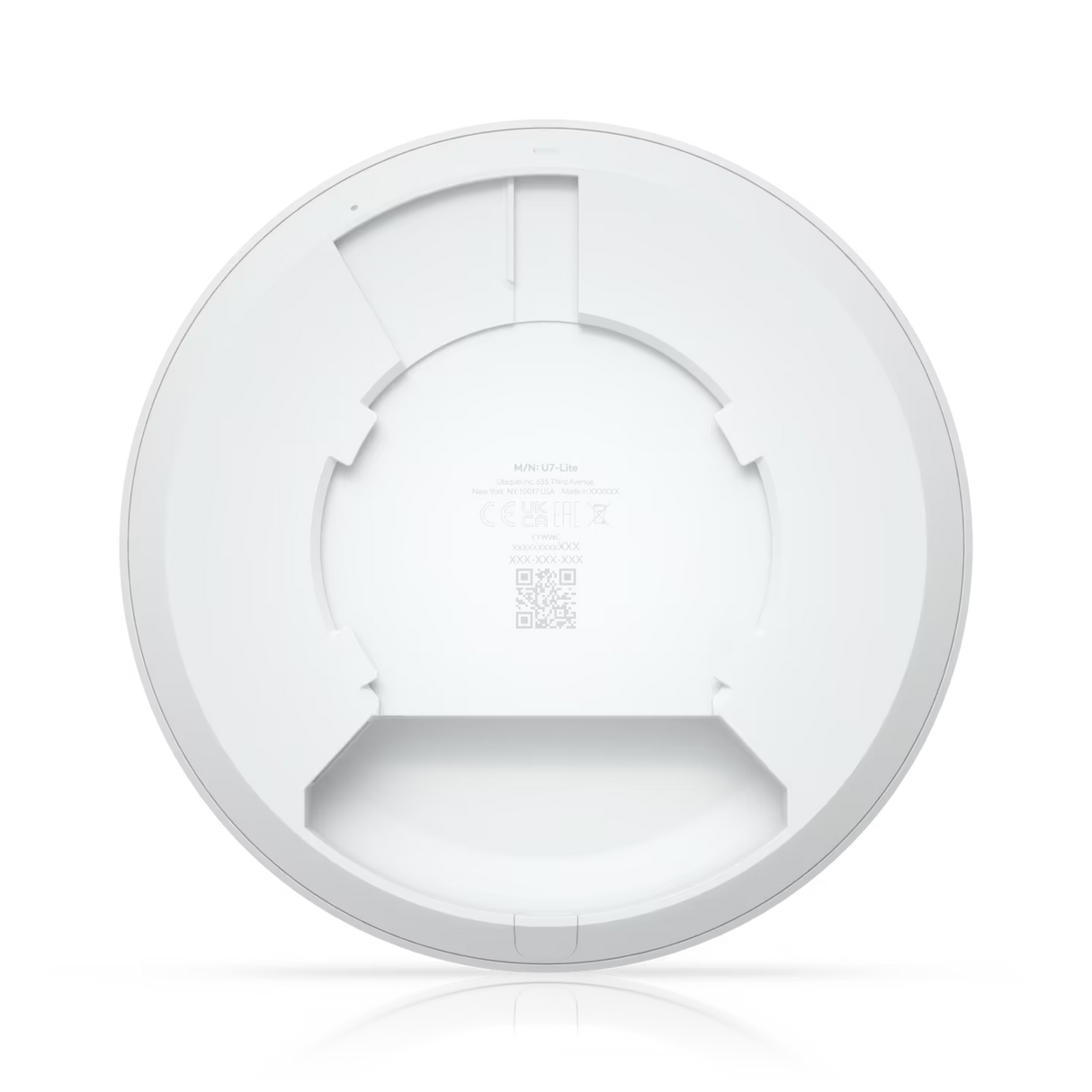

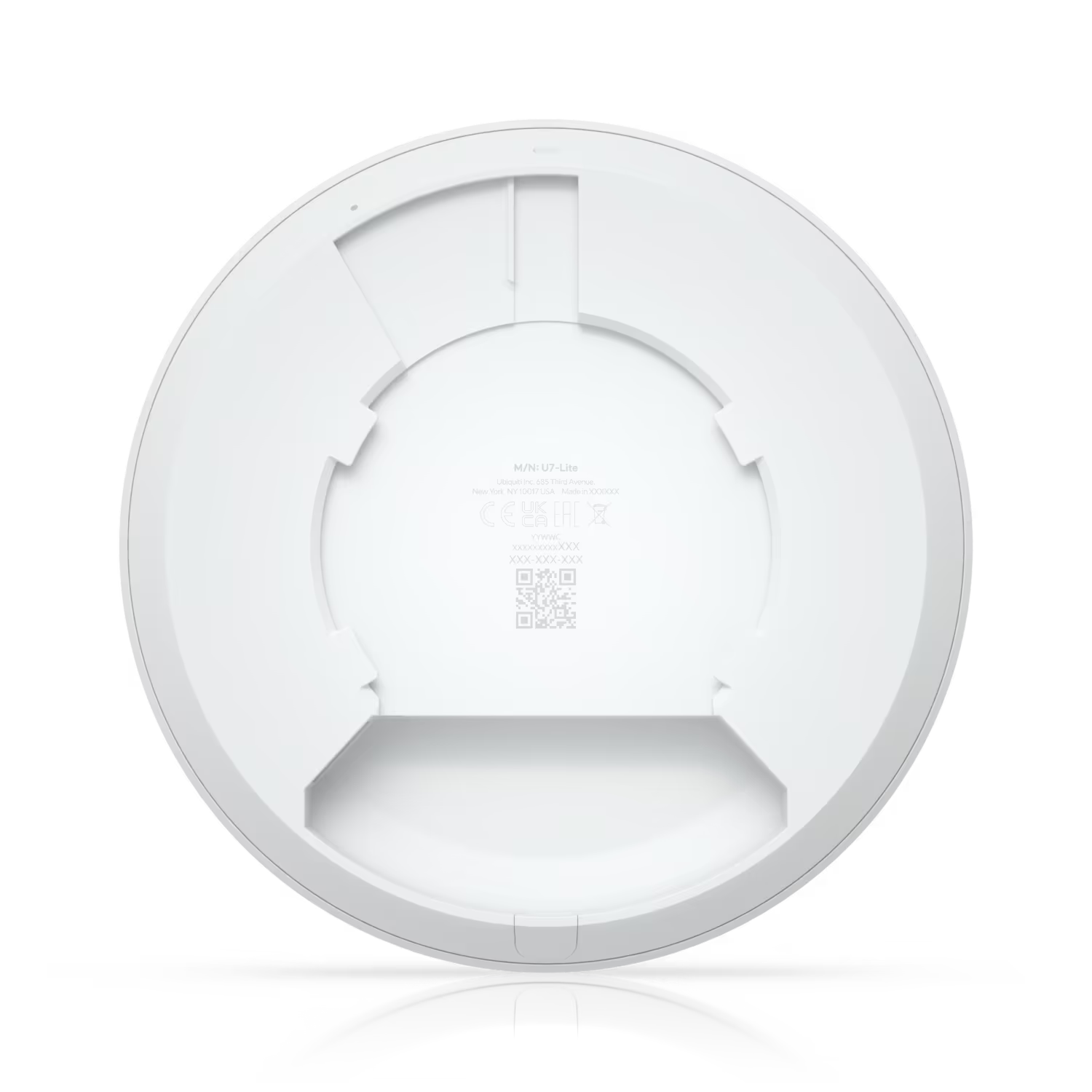

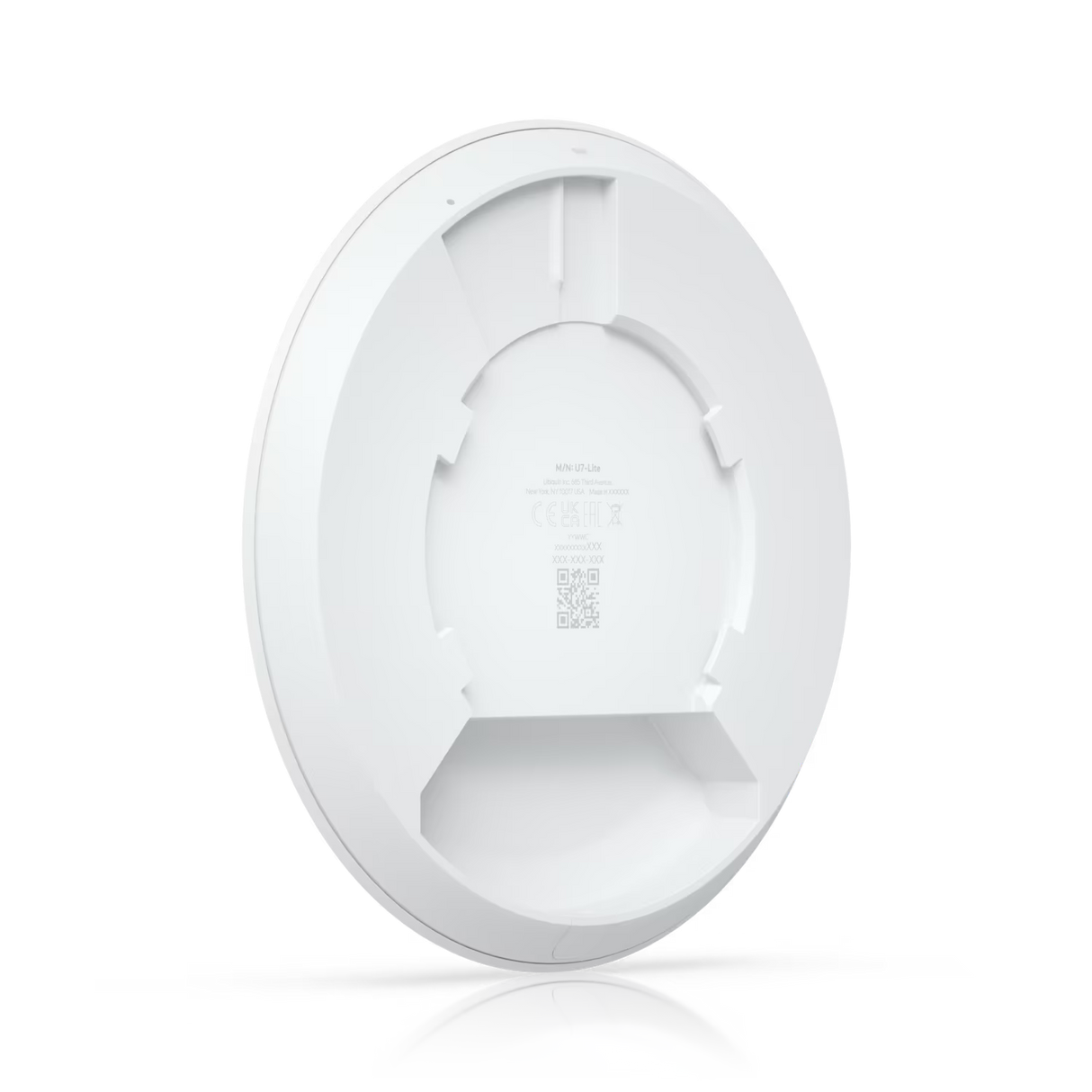

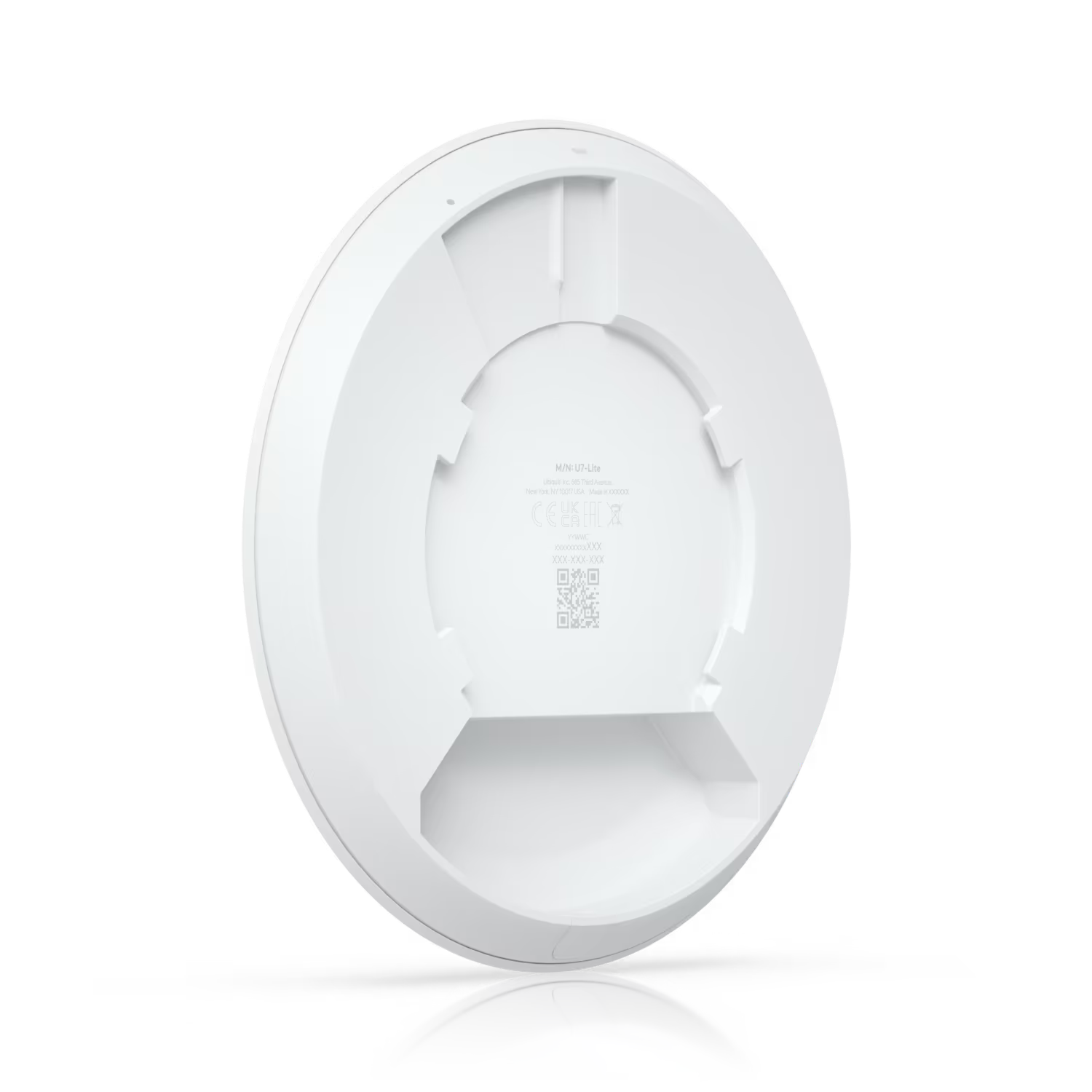

Mounting
Ceiling, Wall
(Lite Mount Included)
Power Method
PoE

Performance
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
5 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
24 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
13W
Supported Voltage Range
42.5—57V DC

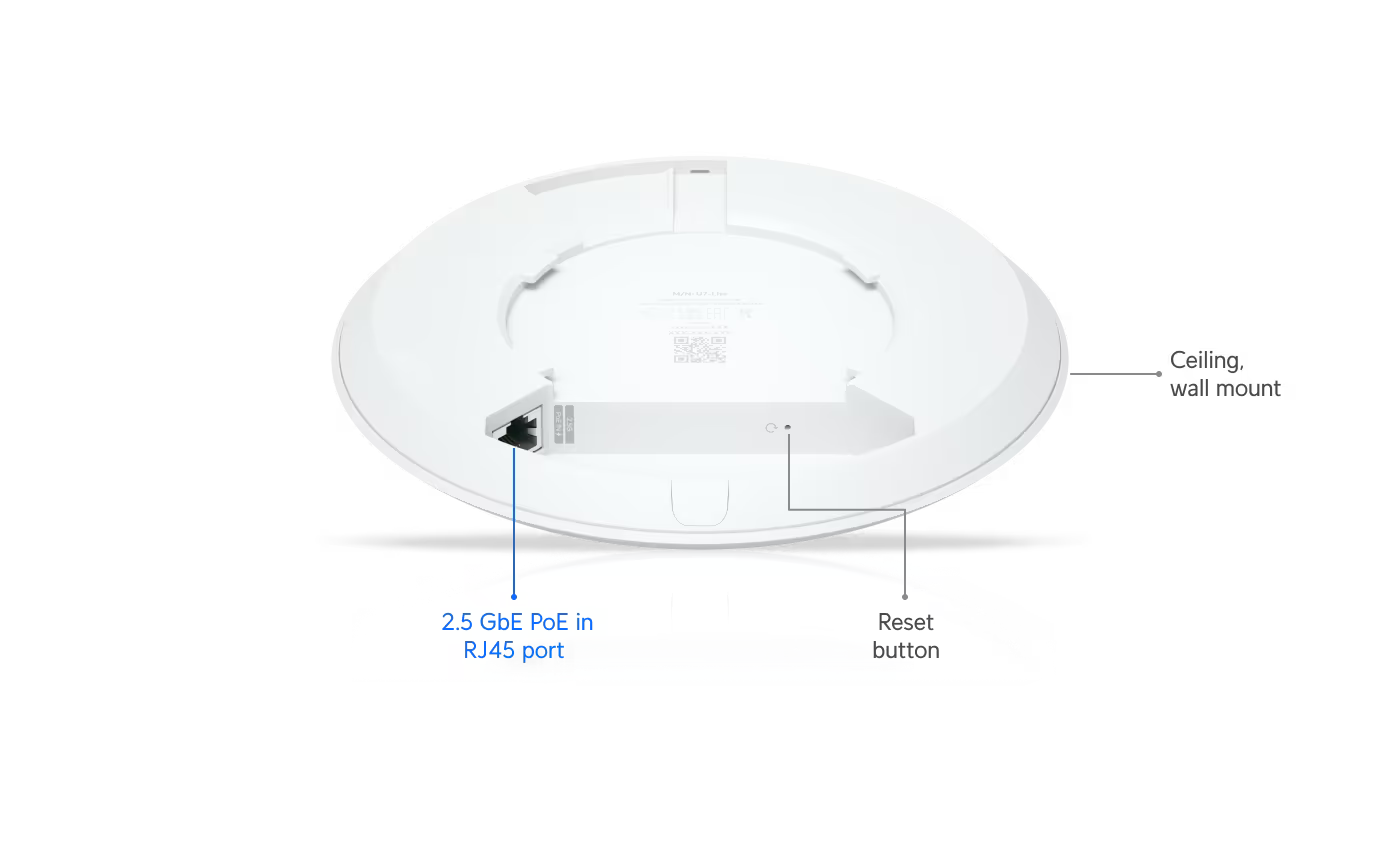

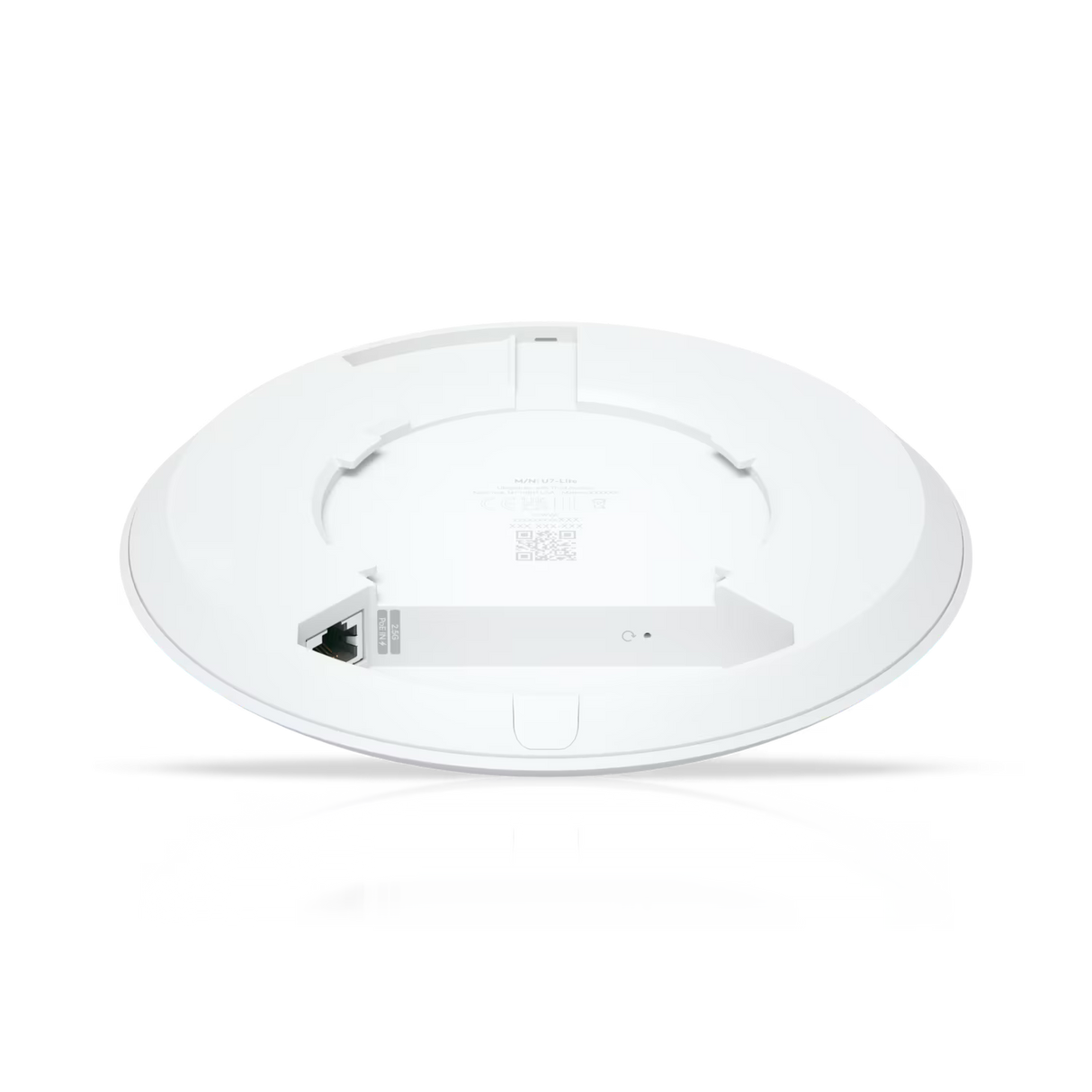

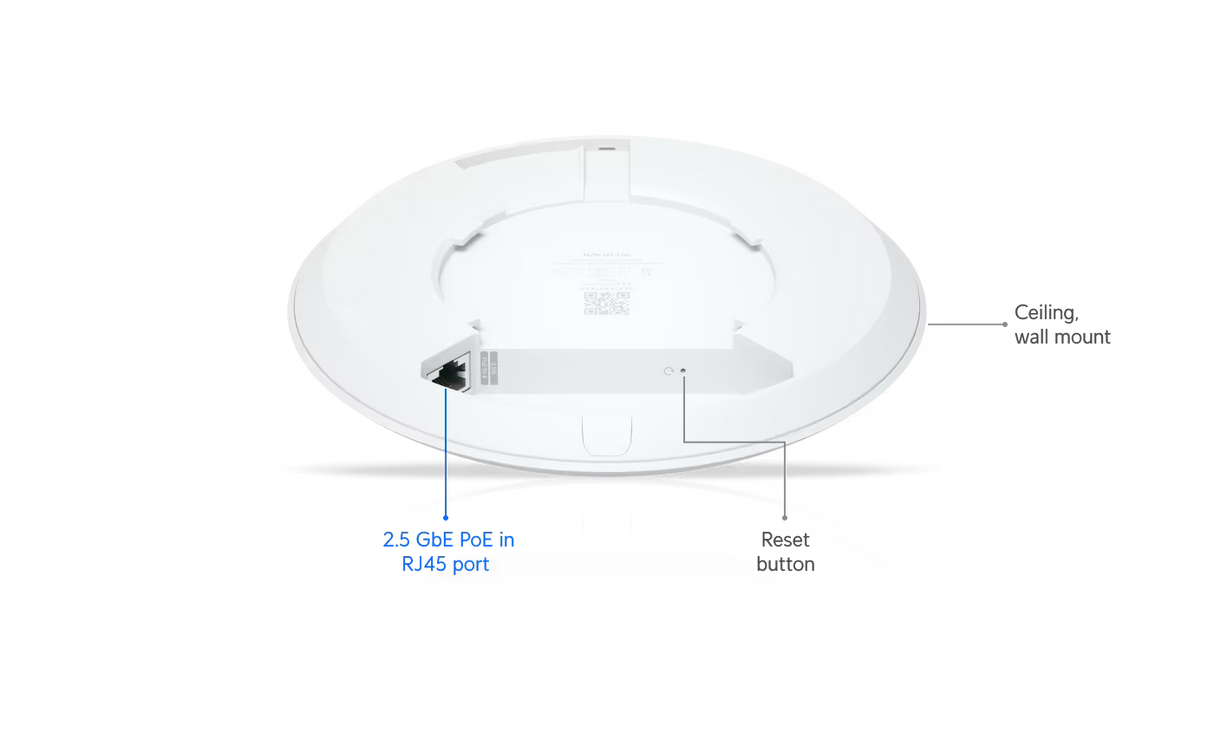

Networking Interface
(1) 2.5 GbE RJ45 port
Weight
313 g (11 oz)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate
Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)

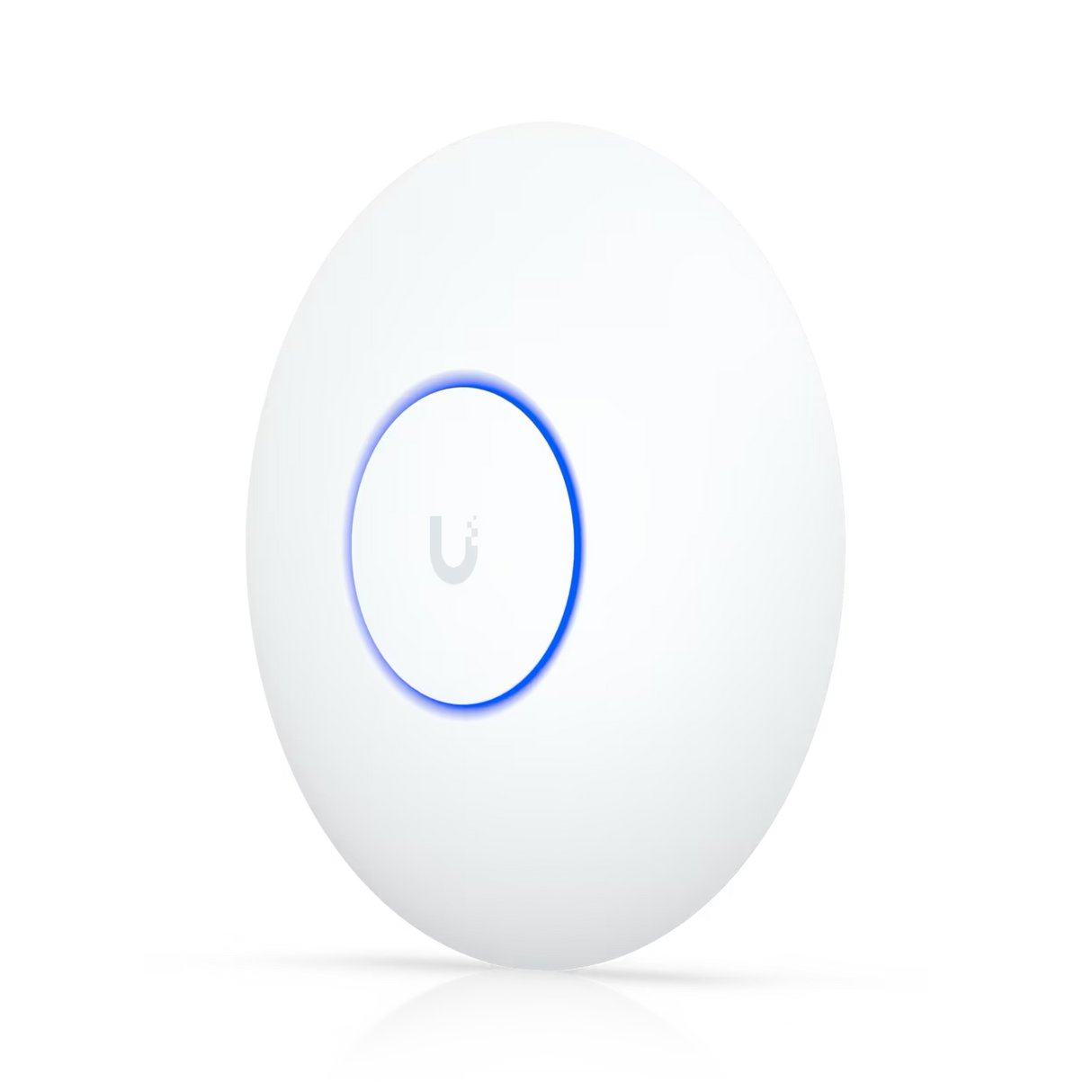

LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network
Version 9.0.114 and later
Mobile App
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
