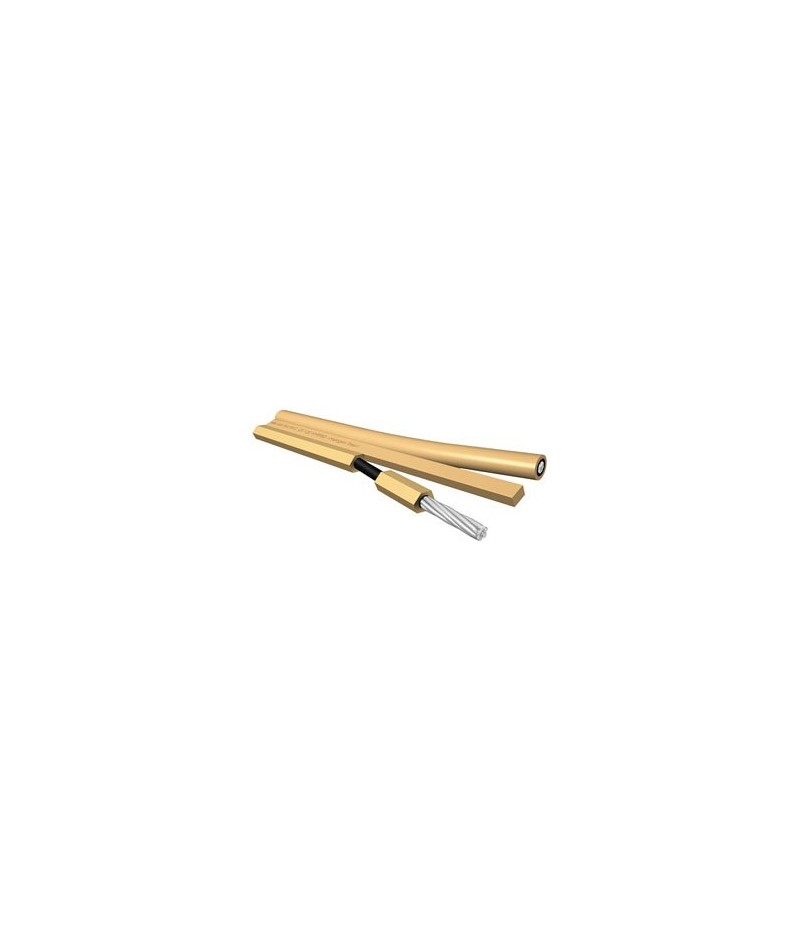

Van Den Hul CS – 122 HYBRID, itin aukštos klasės garsiakalbių kabelis

Aukštos klasės garsiakalbių kabelis, kuris suprojektuotas panaudojant aukščiausios klasės ir kokybės medžiagas. Ko pasekoje garso signalai kabeliu perduodami ypatingai švariai.

check_circle_outline highlight_off
Yra prekyboje Išparduota
Translation missing: lt.product.general.sku_html
Nuolaida: 20.00 €
Kaina: 20.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Van Den Hul CS – 122 HYBRID, itin aukštos klasės garsiakalbių kabelis

Aukštos klasės garsiakalbių kabelis, kuris suprojektuotas panaudojant aukščiausios klasės ir kokybės medžiagas. Ko pasekoje garso signalai kabeliu perduodami ypatingai švariai.

  • Kabelis pasidabruotas.
  • 2 konduktoriai - 147 strypeliai, kurių matmuo 16 mm.
  • AWG 12.5.
  • Kabelio varža: 0.58 Omų/100 m.
  • Kainą už 1 m.
  • Ritėje: 50 m.



This twin lead loudspeaker cable is the twin version of the CS – 12 HF. Main aim is to provide a high quality flat twin lead cable at a low price.

The 2 conductors are made of 147 strands of 0.16 mm. diameter high purity Matched Crystal OFC with a very dense pure silver coating.

  • Each conductor exhibits a cross-section area of 2.96 mm², equalling AWG 12.5.
  • Covering the two conductors you find an extra Linear Structured Carbon ® saturated layer to improve the sonic performance and to transform the radiated magnetic field into an audio-signal again.
  • The resistance per lead is: 0.58 Ohm/100 meter.
  • The capacitance between the 2 leads is: 32 pF/meter.
  • The cable jacket is made of our HULLIFLEX ® 3, a very flexible and mechanically superb insulation material.
  • The insulation of the plus and minus leads is different in shape with printing in the flat middle section. Both properties are easy polarity finders. Type printing on every 25 cm. (10″) makes cutting of specified lengths very easy.
  • This cable is available in a very attractive matt cream color.

Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors and our DIY Screw-On Speaker Connectors are excellently suited for the CS – 122 HYBRID.

Packing conditions for the CS – 122 HYBRID: 100 meters per reel with shipping weight incl. packing box of 320 x 320 x 310 mm.: 13.4 kg.

SPECIFIKACIJOS

  • Please note, you need to enter a quantity of 2 for a pair
  • Cable Type: Twin conductor
  • Conductor Material: HYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
  • Design Purpose / Application Area(s): Loudspeaker cable
  • Eff. Conductor Ø/Eq. AWG No./Strands: 2x(2.96 mm / AWG 12.5 / 147)
  • External Diameter / Dimensions: 16.5 mm. wide; 6.0 mm. thick
  • Resistance 20 °C / 68 °F: 0.58 Ohm/100 m
  • Capacitance: 32 pF/m
  • Insulation / Dielectric Strength / Test Voltage: HULLIFLEX ® 3 / 300 Vrms min
  • Connector Types Suitable: Our 4.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our DIY Screw-On Speaker Connectors; Both custom mountable on ordered lengths
  • Standard Sales Units / Lengths: 100m reels; With connectors mounted to specifications: any length or without connectors
  • Jacket Colours Available: Cream
  • Remarks: Is a twinlead HYBRID version of our CS - 12 HF; Our The TEATRACK HYBRID is a quadruple lead / biwiring version of this cable
