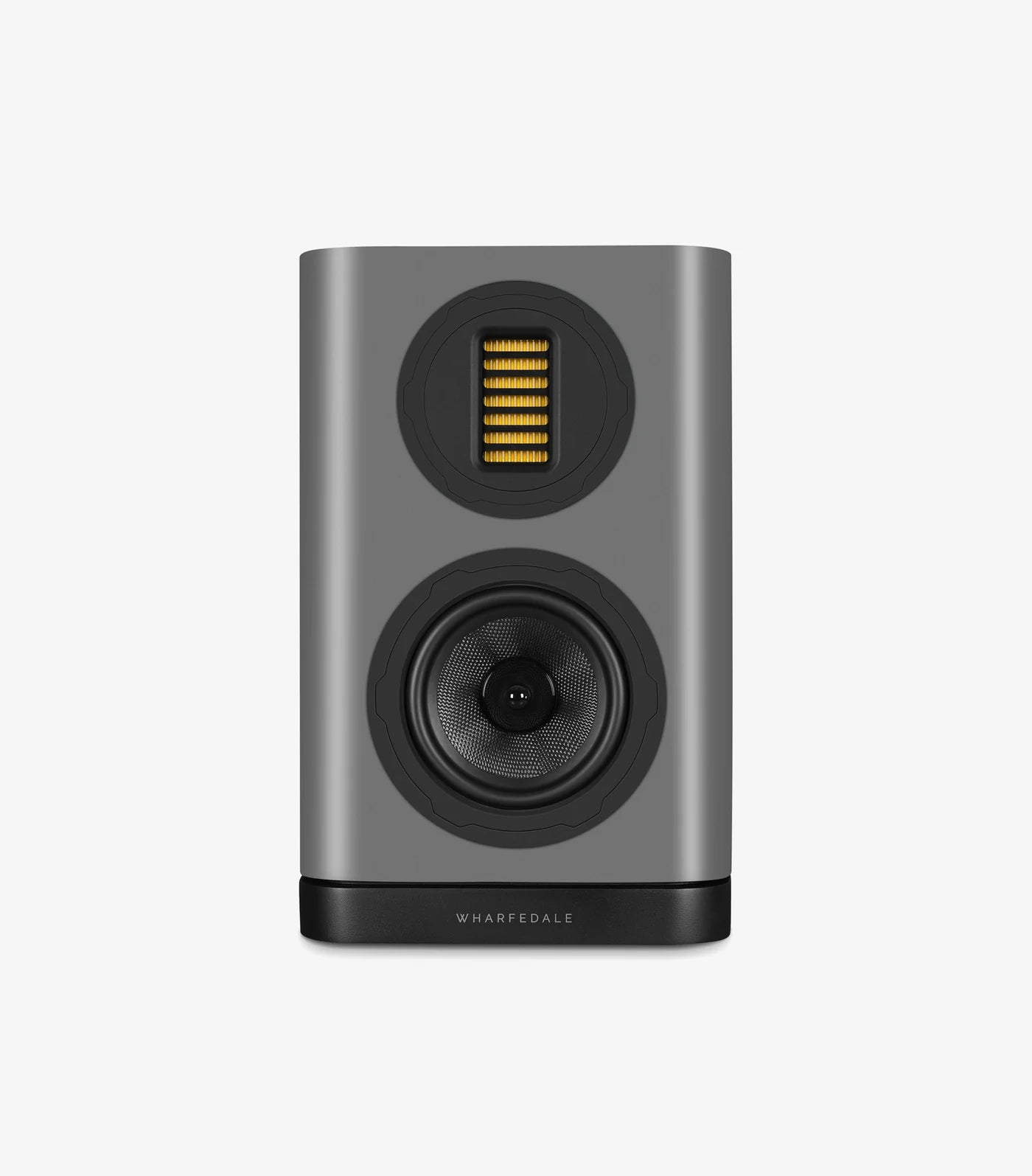

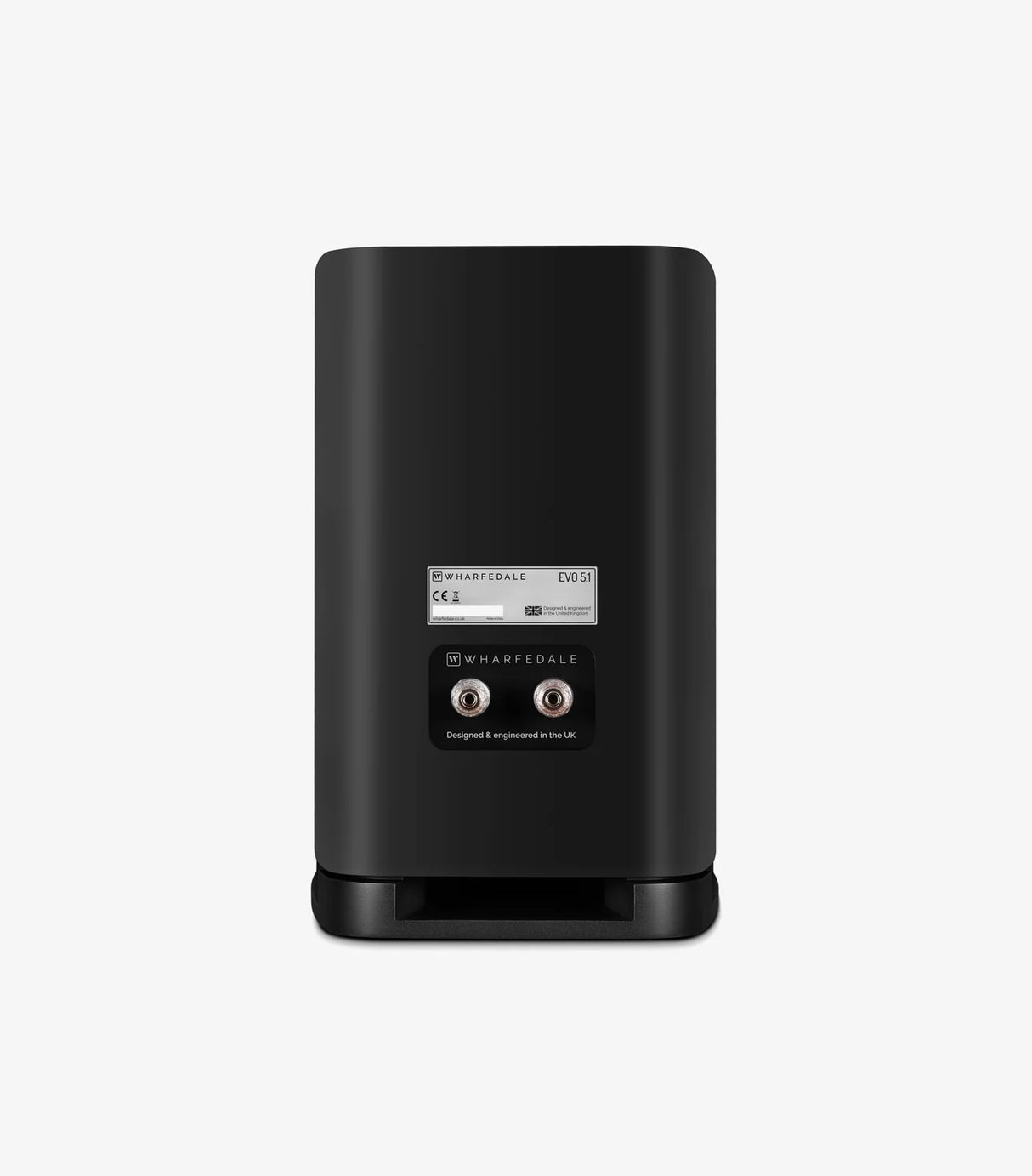

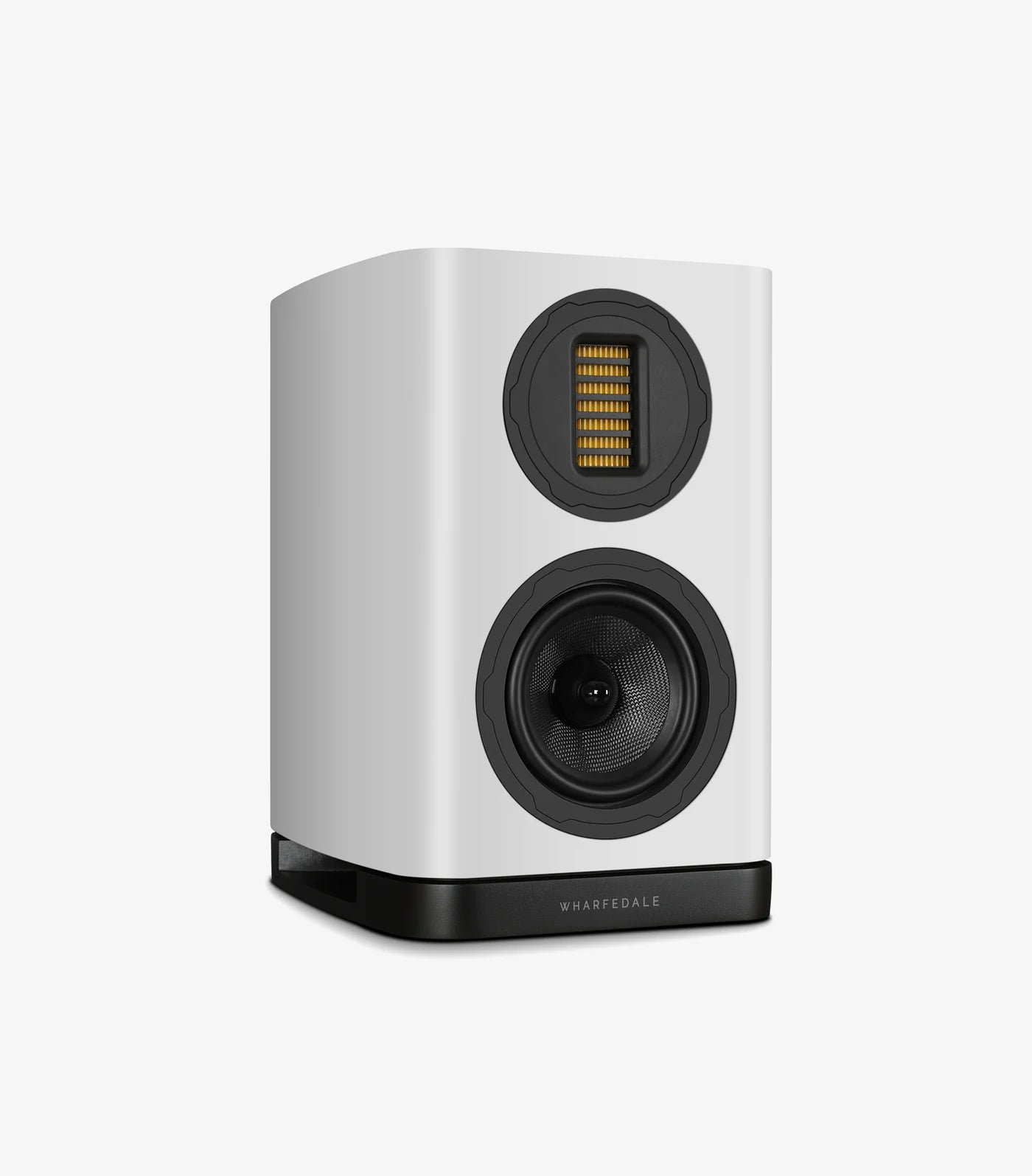

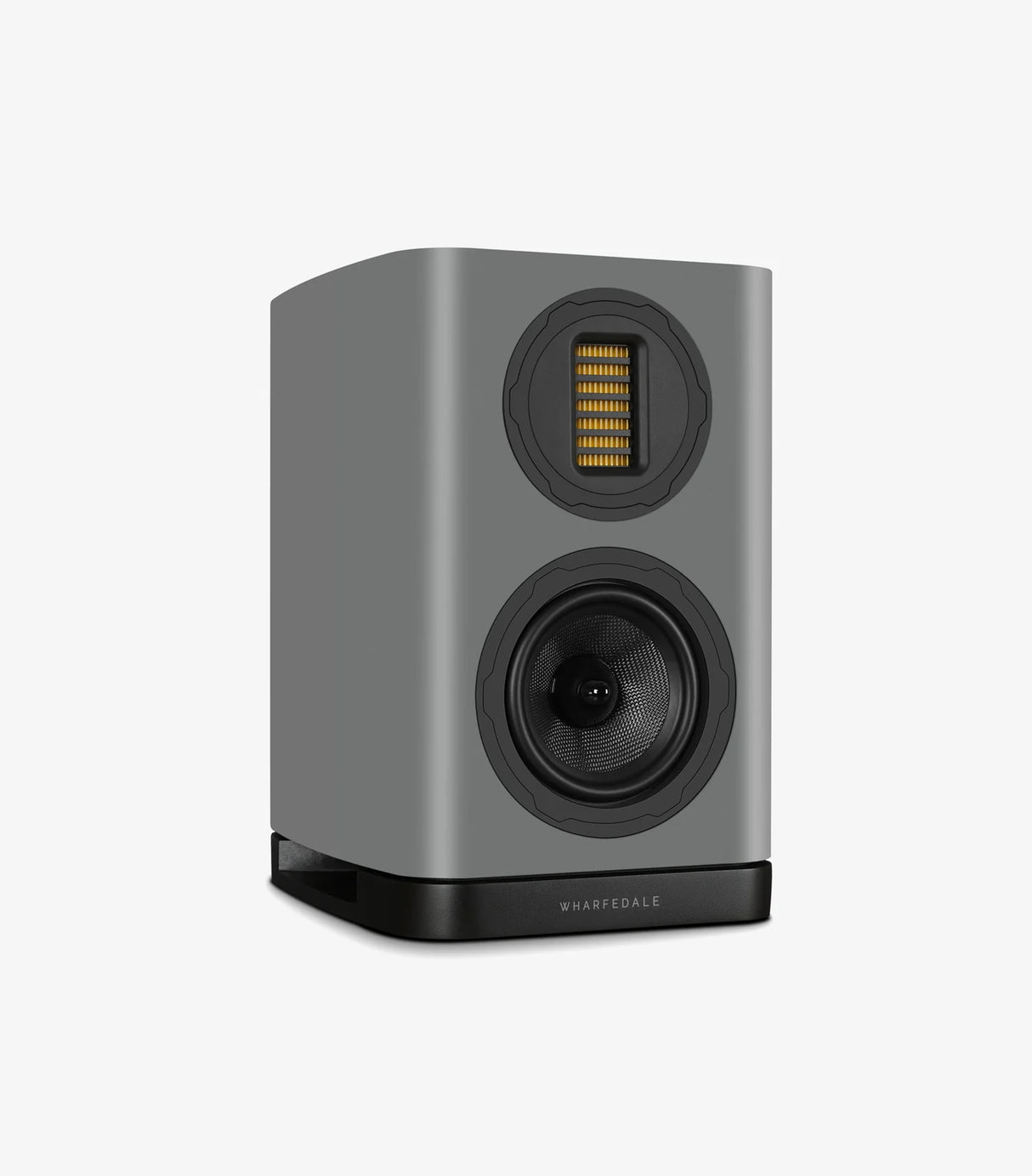

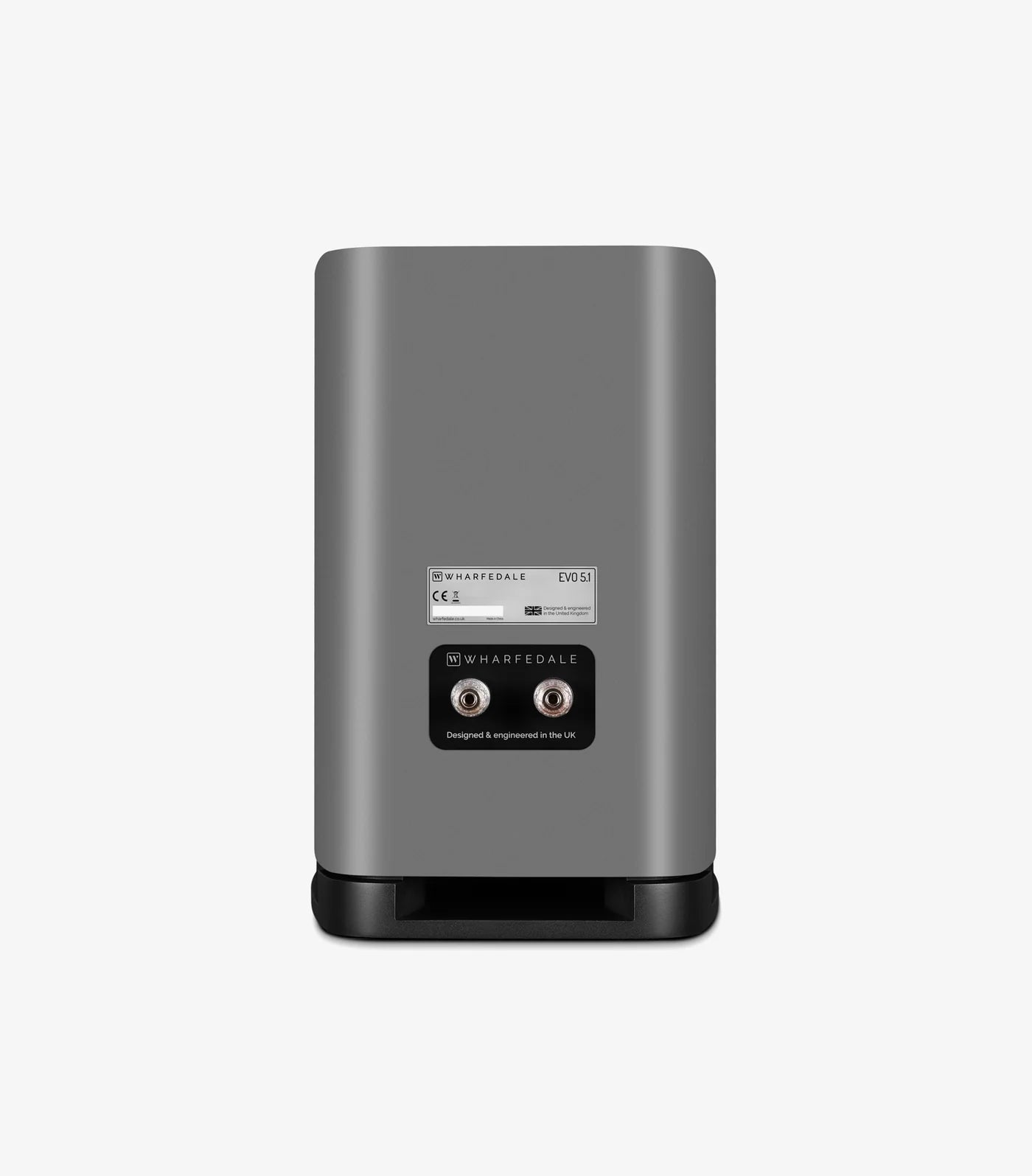

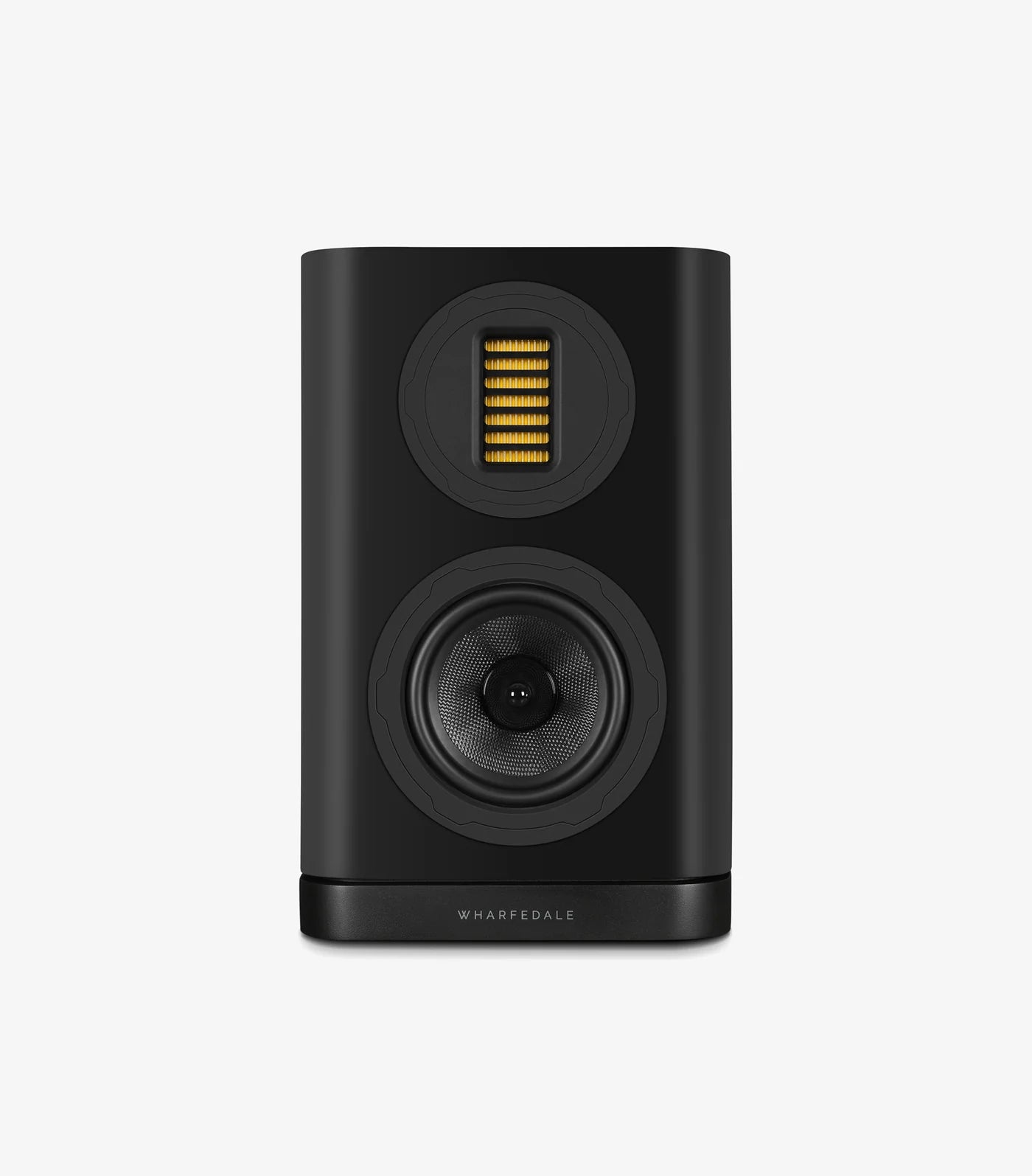

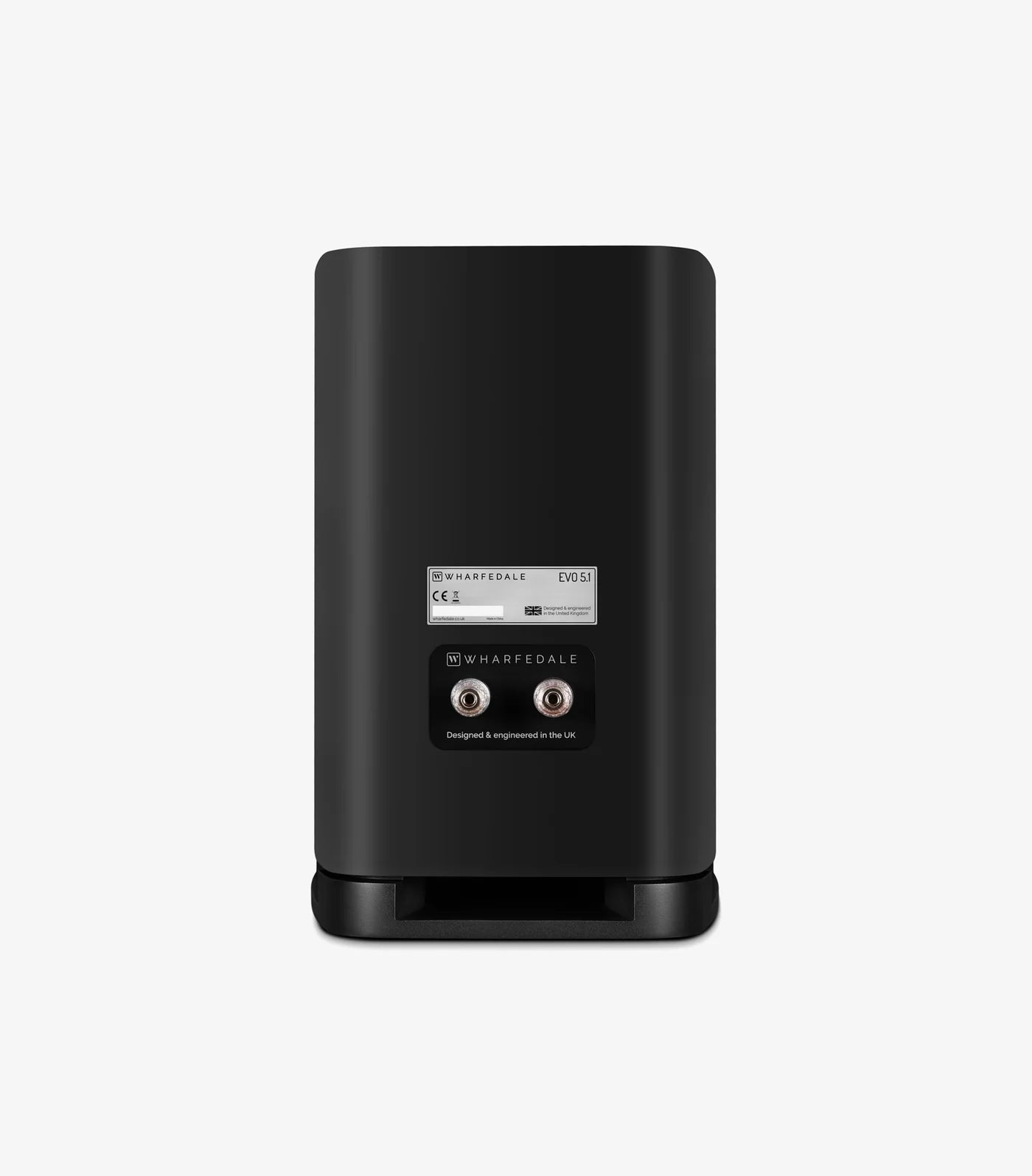

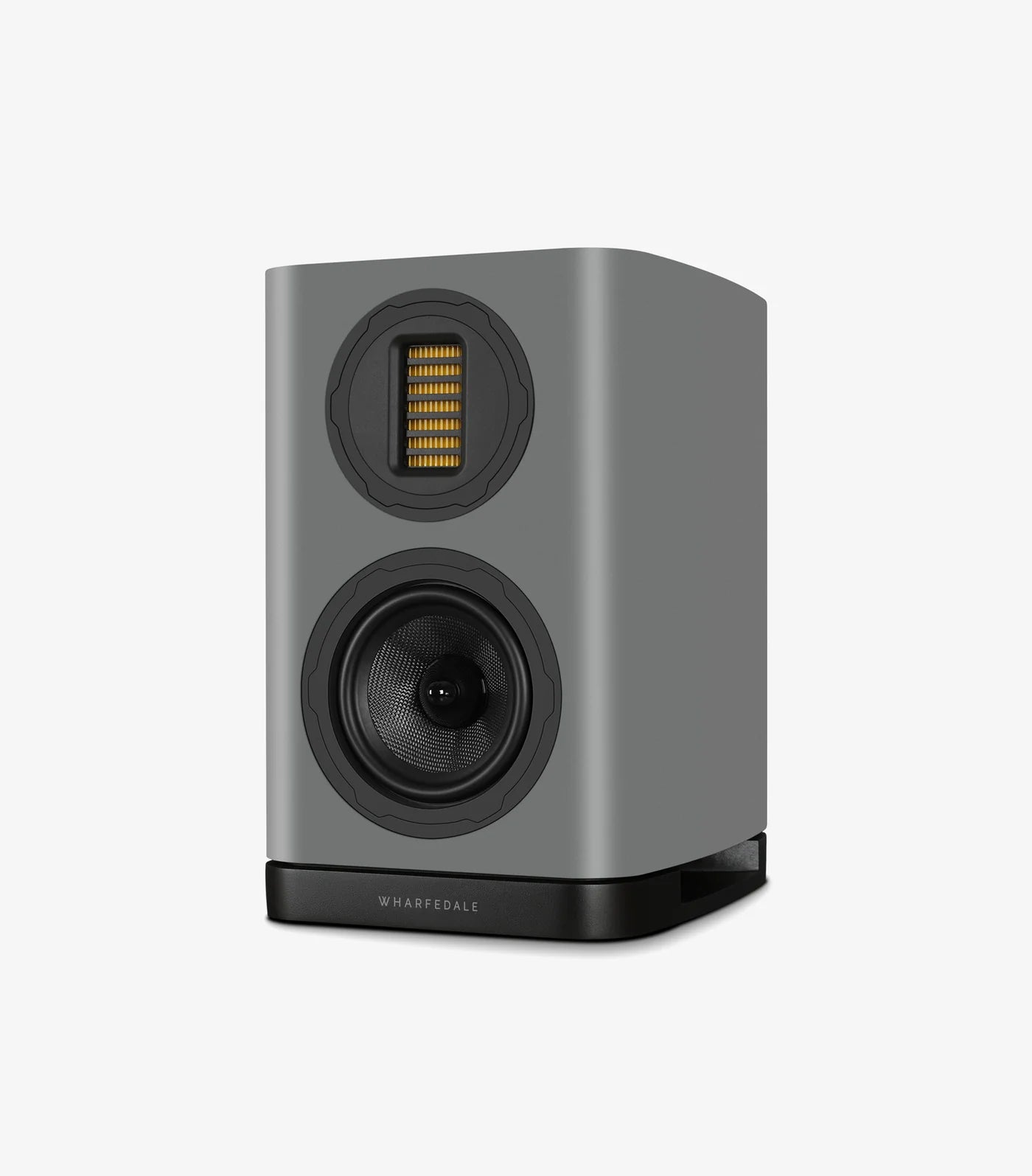

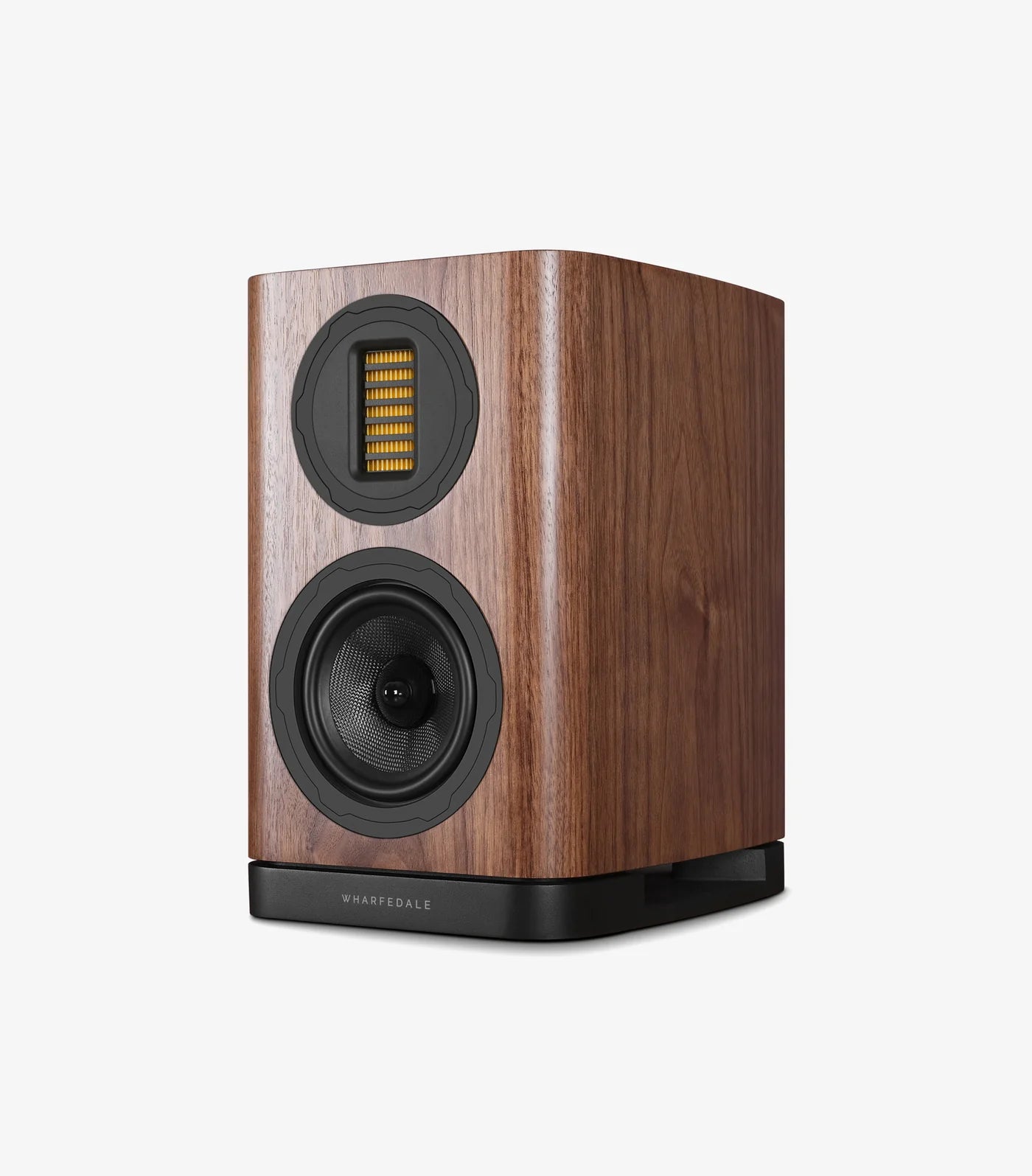

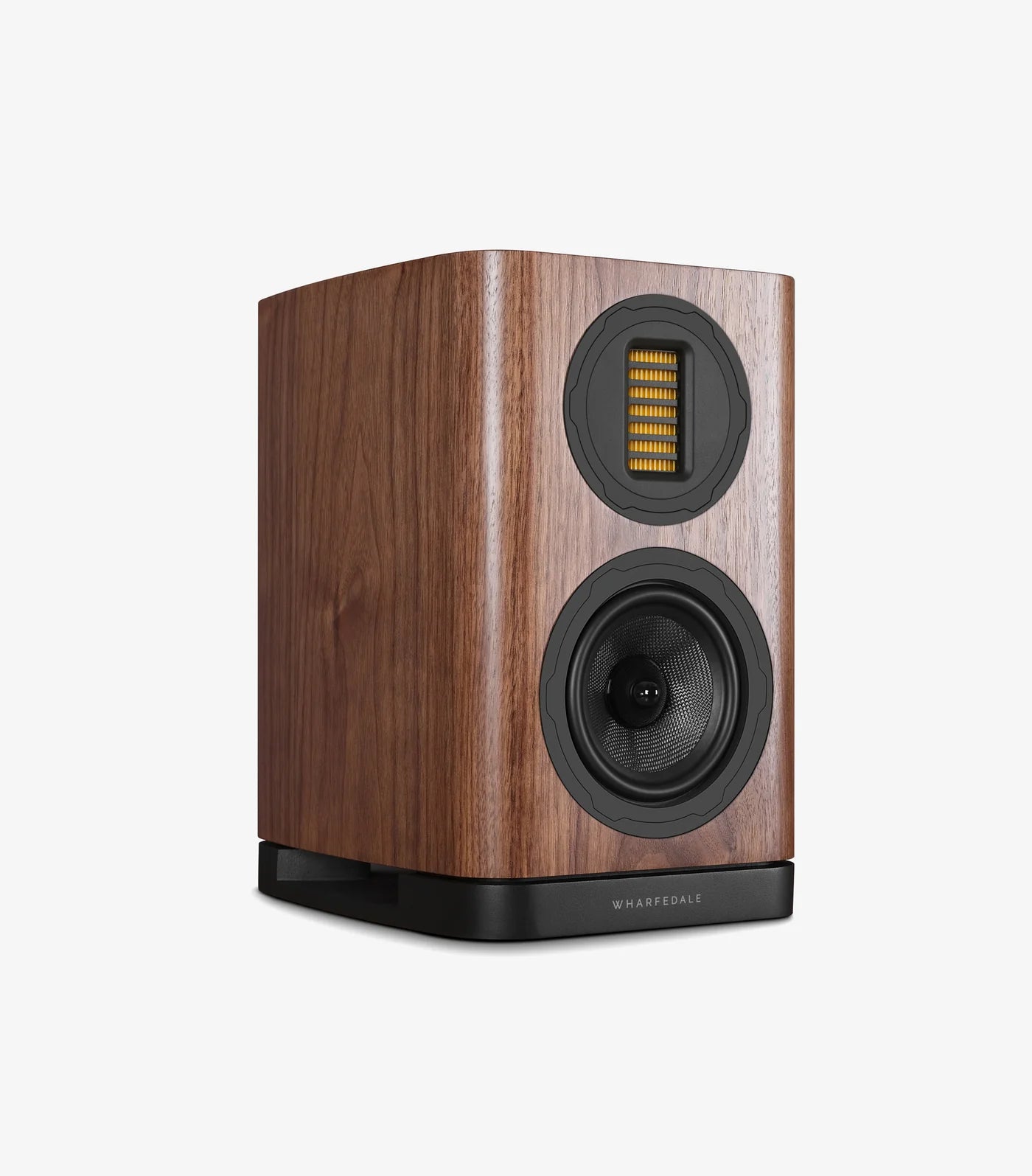

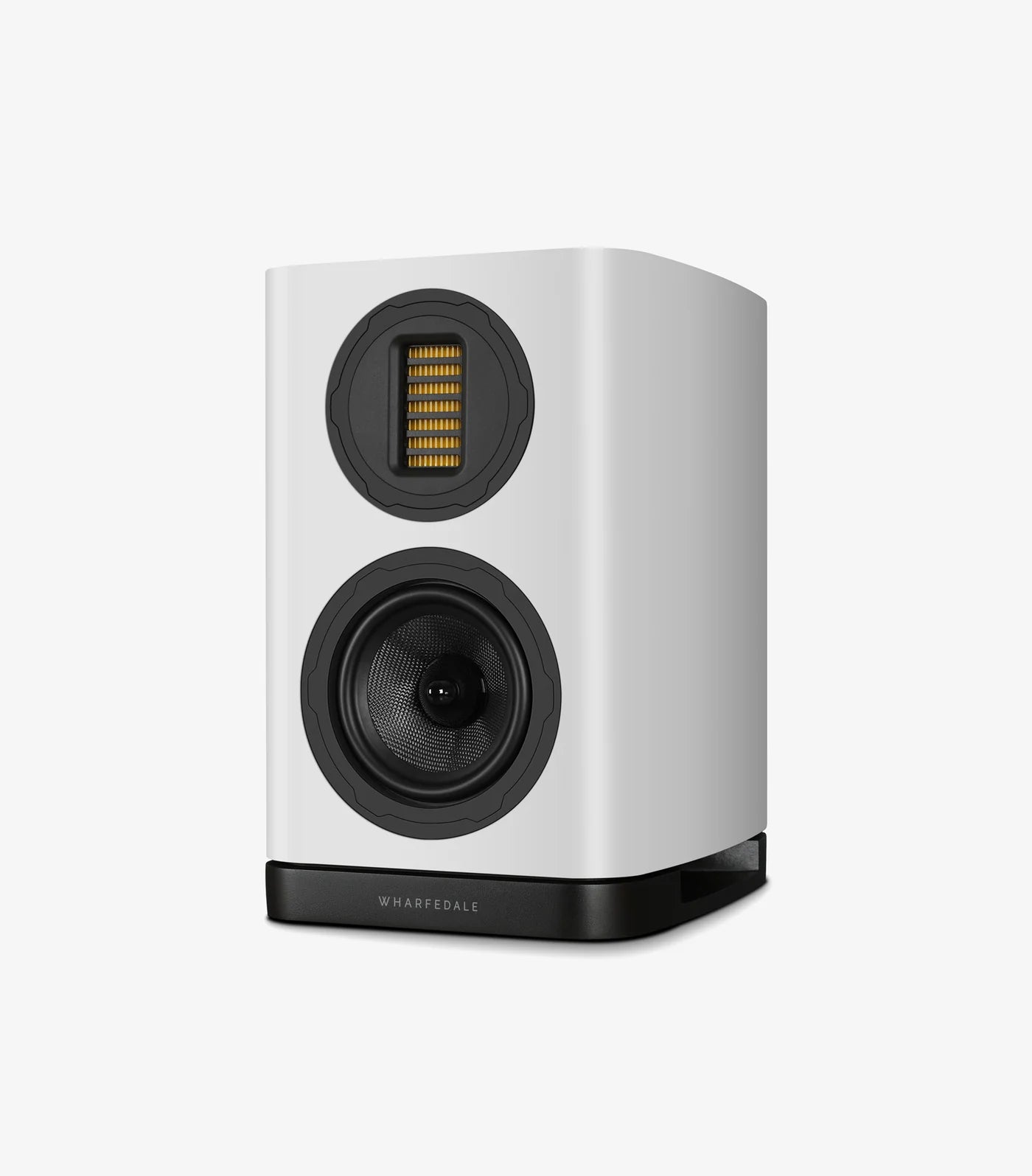

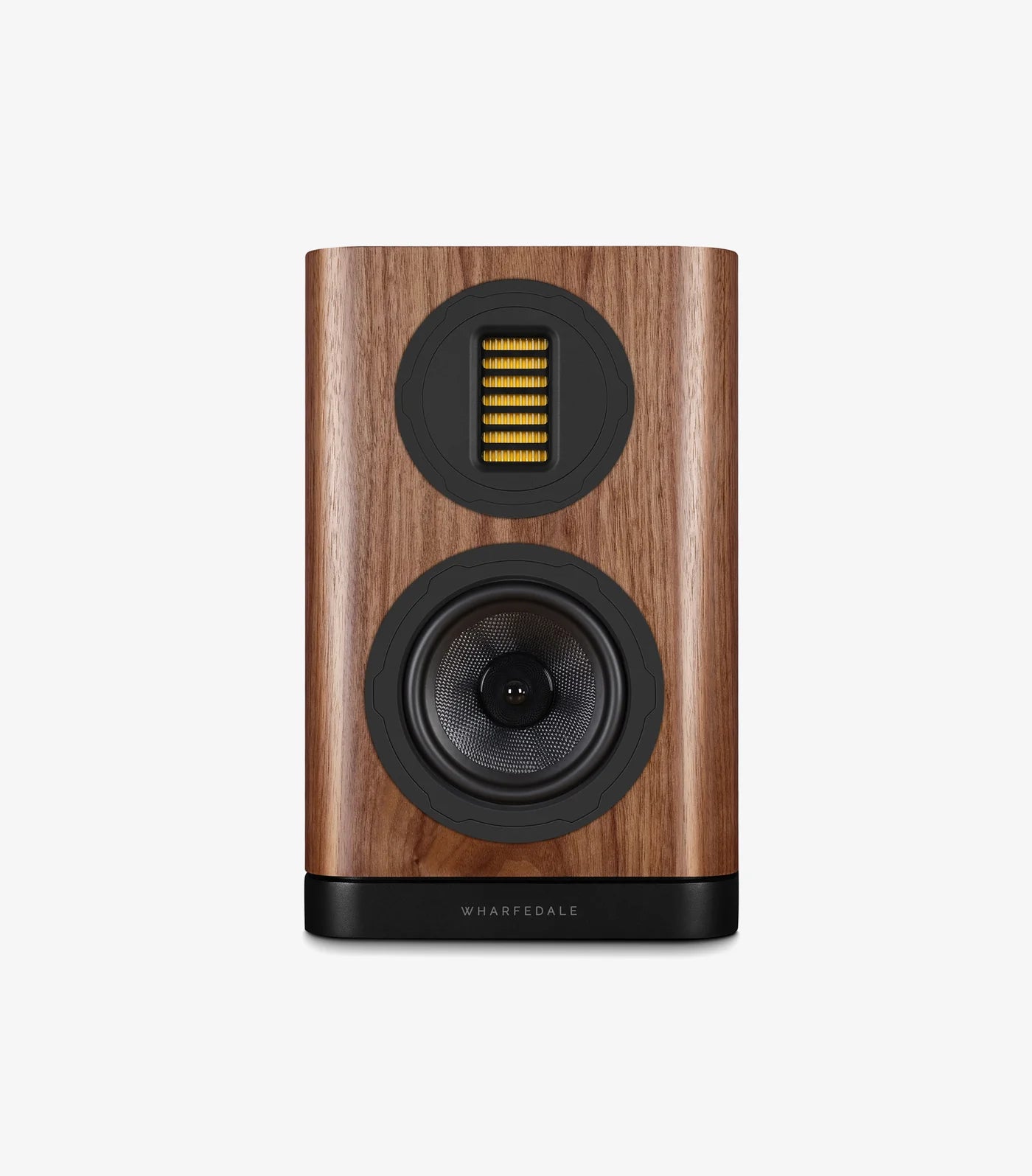

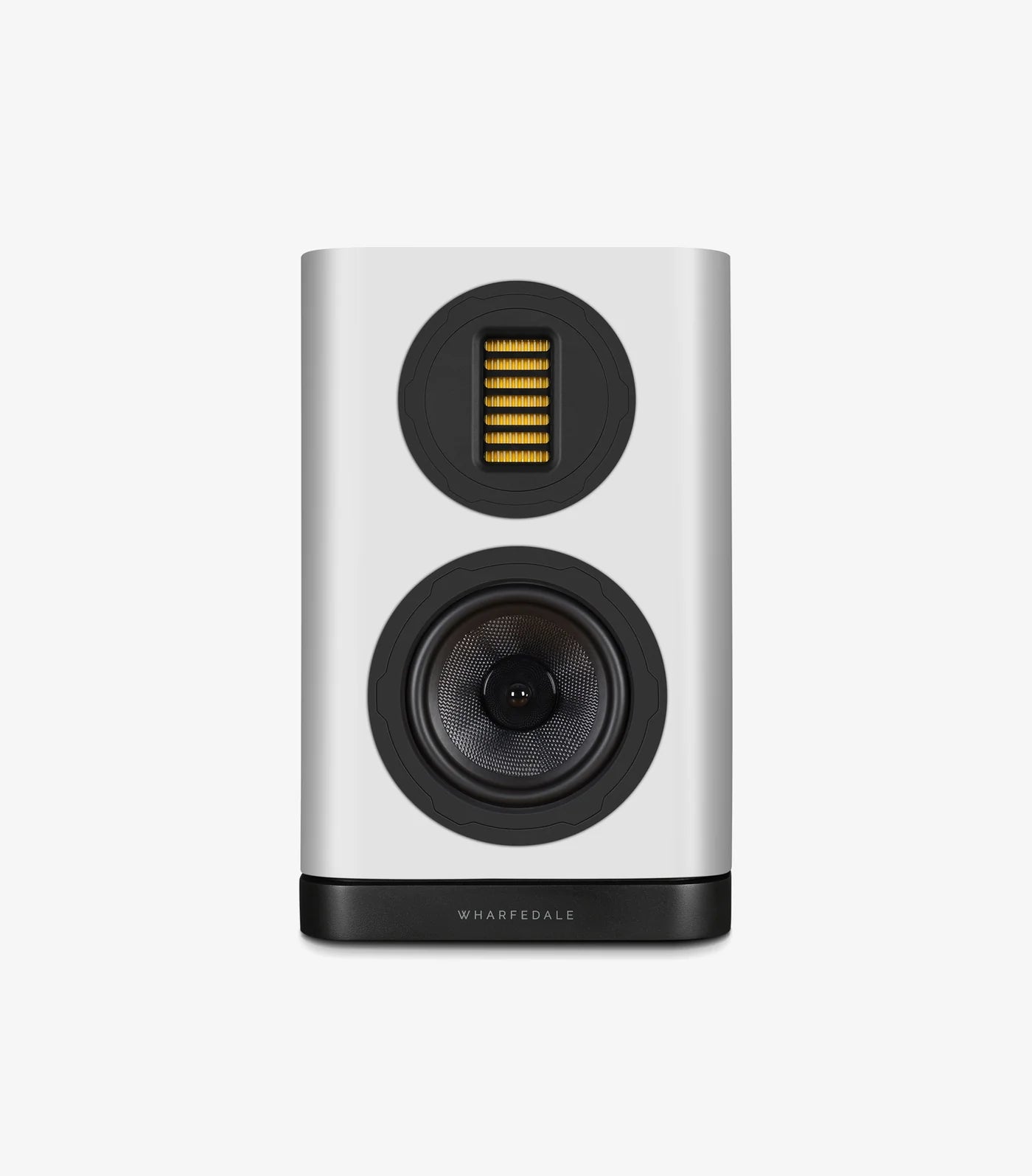

Wharfedale EVO 5.1, lentyninės garso kolonėlės

INFORMACIJA

.1 - tai pažangios garso technologijos ir rafinuoto dizaino derinys, sukurtas siekiant aukščiausios kokybės klausymosi patirties. Remiantis apdovanojimų pelniusia EVO4 serija, EVO 5 modeliai siūlo dar didesnį skambesio tikslumą, gilumą ir detalumą. Naudojant aukštos klasės AMT (Air Motion Transformer) aukštų dažnių garsiakalbį, pažangias rezonanso mažinimo medžiagas bei padidintą vidinį korpuso tūrį, EVO 5.1 leidžia mėgautis nepaprastai švariu, subalansuotu garsu.

Jautrumas (2.83V @ 1m): 87dB
Rekomenduojama stiprintuvo galia: 25-100W
Nominali varža: 4 Ω (8 Ω suderinama)
Dažnių diapazonas: 56Hz – 24kHz (±3 dB)
Crossover dažnis: 2.7kHz

APRAŠYMAS

The EVO 5 Series represents a bold step forward for Wharfedale - taking everything that makes the EVO4 a showroom-staple and multi-award winning loudspeaker series but blending luxurious design updates with technical evolution further to enhance the appeal of a price-bracket-defying loudspeaker offering.

Whether an audiophile seeking nuanced musical expression or a casual listener desiring clarity and depth, the EVO 5 speakers promise an immersive, high-fidelity experience that rivals far more expensive high-end audio offerings.

High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.

A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.

Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.

The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.

All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.

These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.

Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more naturaLower-Midrange and Bass Refinements for Unparalleled Vocal Reproductionl, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.

Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.

The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.

TECHNINIAI DUOMENYS

Model    EVO 5.1
General description    2-way bookshelf speaker
Design philosophy and core technology
Enclosure type    bass reflex
Transducer complement    2-way
ABR
Bass driver    5"(130mm) Black Woven Kevlar Cone
Midrange driver
Treble driver    35 x 70mm AMT
Full-range driver
AV shield    No
Sensitivity (2.83V @ 1m)    87dB
Recommended amplifier power    25-100W
Peak power handling
Peak SPL    98dB
Nominal impedance    4Ω (8Ω compatible)
Minimum impedance    3.4Ω
Frequency response (+/-3dB)    56Hz – 24kHz
Bass extension (-6dB)    46Hz
Crossover frequency    2.7kHz
Cabinet Volume (in litres)    11.5L
Dimensions (mm)
Height (on plinth)    340mm
Width    220mm
Depth (with grille+terminal)    (285 + 40)mm
Carton size    610 * 415 * 455mm
Net weight    8.0kg/pcs
Gross weight    20.5kg/ctn
Finish    Walnut/Black Oak Veneer
Standard accessories    rubber fee
