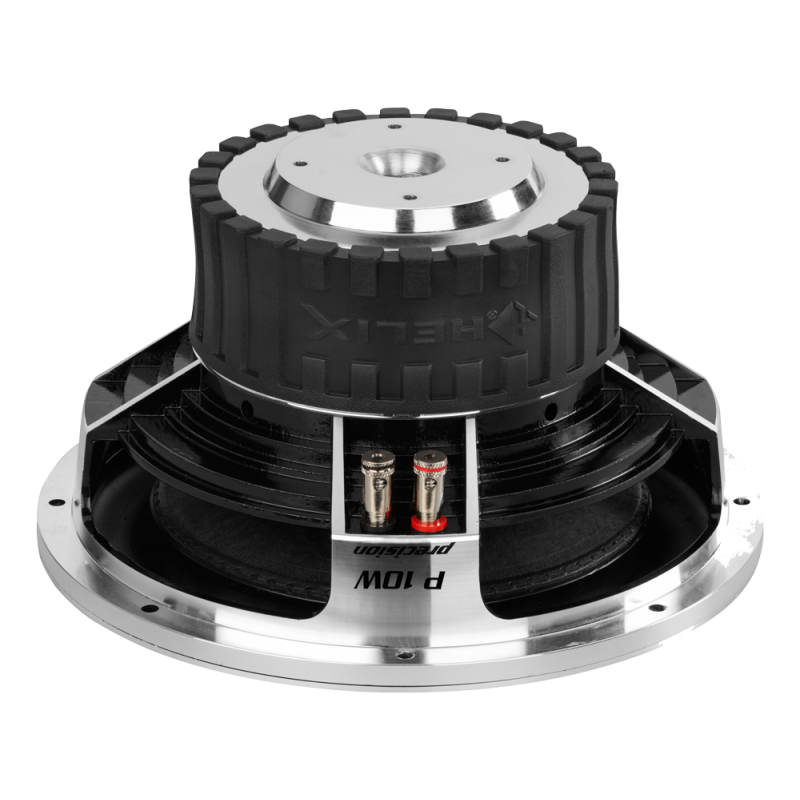

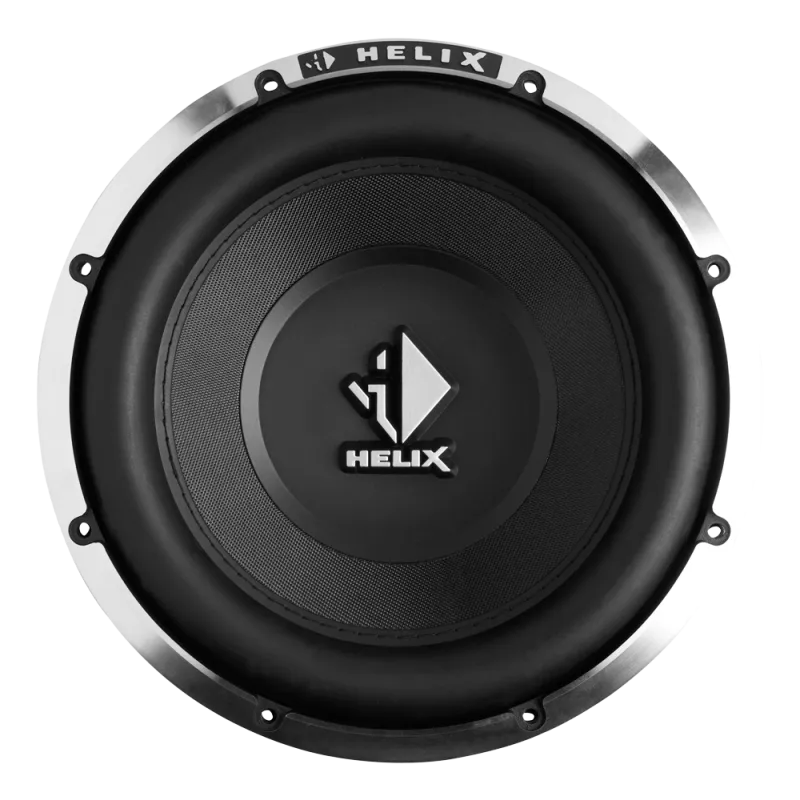

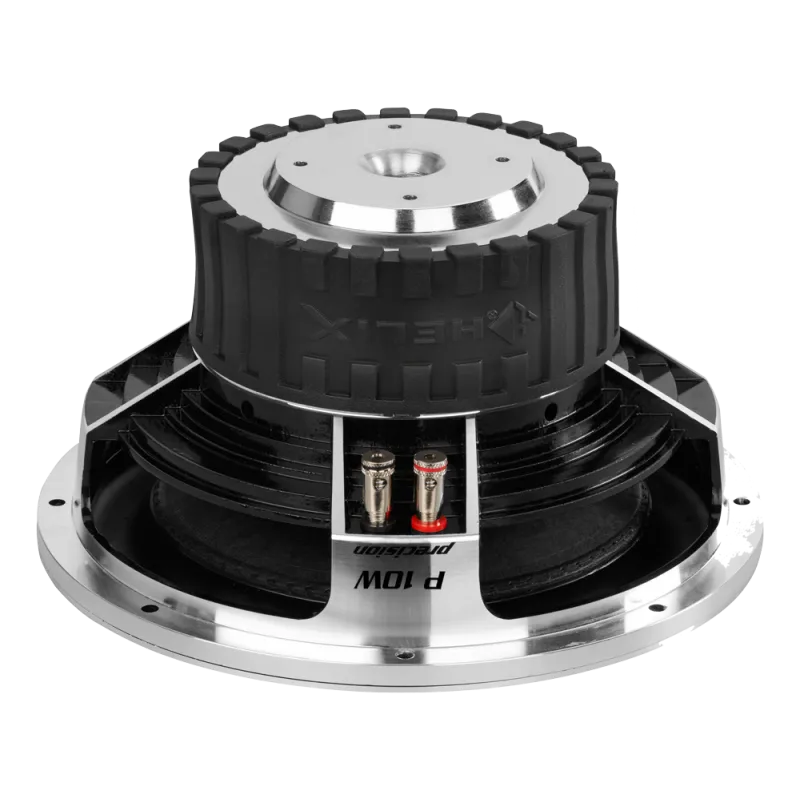

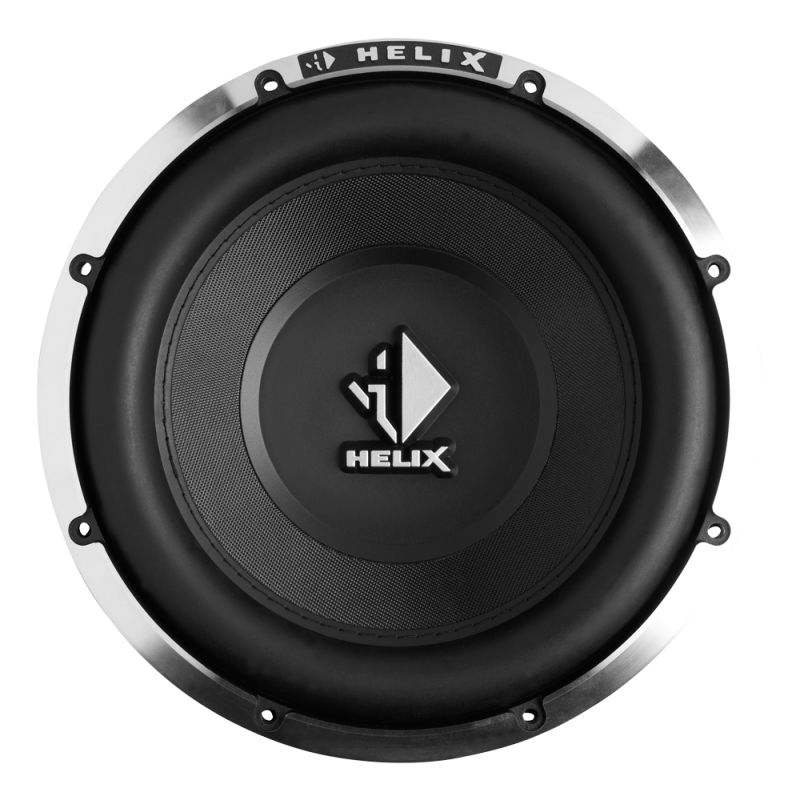

Žemų dažnių garsiakalbis Helix P 10W, 25cm, 700W

Galia: RMS 350W  /  MAX 700W Varža: 4 omai Jautrumas: 86 dB Rezonanso dažnis: 25 Hz Jėgos faktorius: 13.4 Tm Montavimo gylis: 130 mm Garso ritės skersmuo: 63.5 mm Voice coil winding height: 23 mm FEATURES Concave PP dustcap with embossed HELIX logo Long-excursion rubber surround with stitching for highest mechanical rating Extremely stiff Kevlar / paper sandwich cone Machined aluminum mounting ring to fix the rubber surround Double-vented voice coil for minimized compression effects Large magnet system for low Qts Torsion-free aluminum diecast basket with diamond cut Oversized voice coil for maximum electrical power handling and high linear excursion Rugged butyl magnet cover with HELIX lettering for perfect magnet protection Solid push terminals TECHNINIAI DUOMENYS Max. linear excursion +/- 6.5 mm Cone area 346 cm² Moving mass 123 g DC resistance 2.8 Ohms Mechanical Q factor 3.26 Electrical Q factor 0.30 Total Q factor 0.28 Equivalent air volume 50 L Voice coil inductance 1.31 mH Outer diameter 260 mm / 10.2“ Cutout diameter 234 mm / 9.2“ Vented net volume 25 L Port diameter 8 cm Port area: 50 cm² Port length 26 cm Port tuning frequency 40 Hz DOKUMENTAI Daugiau informacijos

check_circle_outline highlight_off
Yra prekyboje Išparduota
Nuolaida: 189.00 €
Kaina: 189.00 €

Greitas užsakymas

Įveskite savo duomenis ir pateikite užsakymą. Mūsų vadybininkas susisieks su Jumis ir suderins visas pristatymo ir apmokėjimo detales.

Žemų dažnių garsiakalbis Helix P 10W, 25cm, 700W

  • Galia: RMS 350W  /  MAX 700W
  • Varža: 4 omai
  • Jautrumas: 86 dB
  • Rezonanso dažnis: 25 Hz
  • Jėgos faktorius: 13.4 Tm
  • Montavimo gylis: 130 mm
  • Garso ritės skersmuo: 63.5 mm
  • Voice coil winding height: 23 mm
  • Concave PP dustcap with embossed HELIX logo
  • Long-excursion rubber surround with stitching for highest mechanical rating
  • Extremely stiff Kevlar / paper sandwich cone
  • Machined aluminum mounting ring to fix the rubber surround
  • Double-vented voice coil for minimized compression effects
  • Large magnet system for low Qts
  • Torsion-free aluminum diecast basket with diamond cut
  • Oversized voice coil for maximum electrical power handling and high linear excursion
  • Rugged butyl magnet cover with HELIX lettering for perfect magnet protection
  • Solid push terminals
    • Max. linear excursion +/- 6.5 mm
    • Cone area 346 cm²
    • Moving mass 123 g
    • DC resistance 2.8 Ohms
    • Mechanical Q factor 3.26
    • Electrical Q factor 0.30
    • Total Q factor 0.28
    • Equivalent air volume 50 L
    • Voice coil inductance 1.31 mH
    • Outer diameter 260 mm / 10.2“
    • Cutout diameter 234 mm / 9.2“
    • Vented net volume 25 L
    • Port diameter 8 cm
    • Port area: 50 cm²
    • Port length 26 cm
    • Port tuning frequency 40 Hz
